2026

22nd October

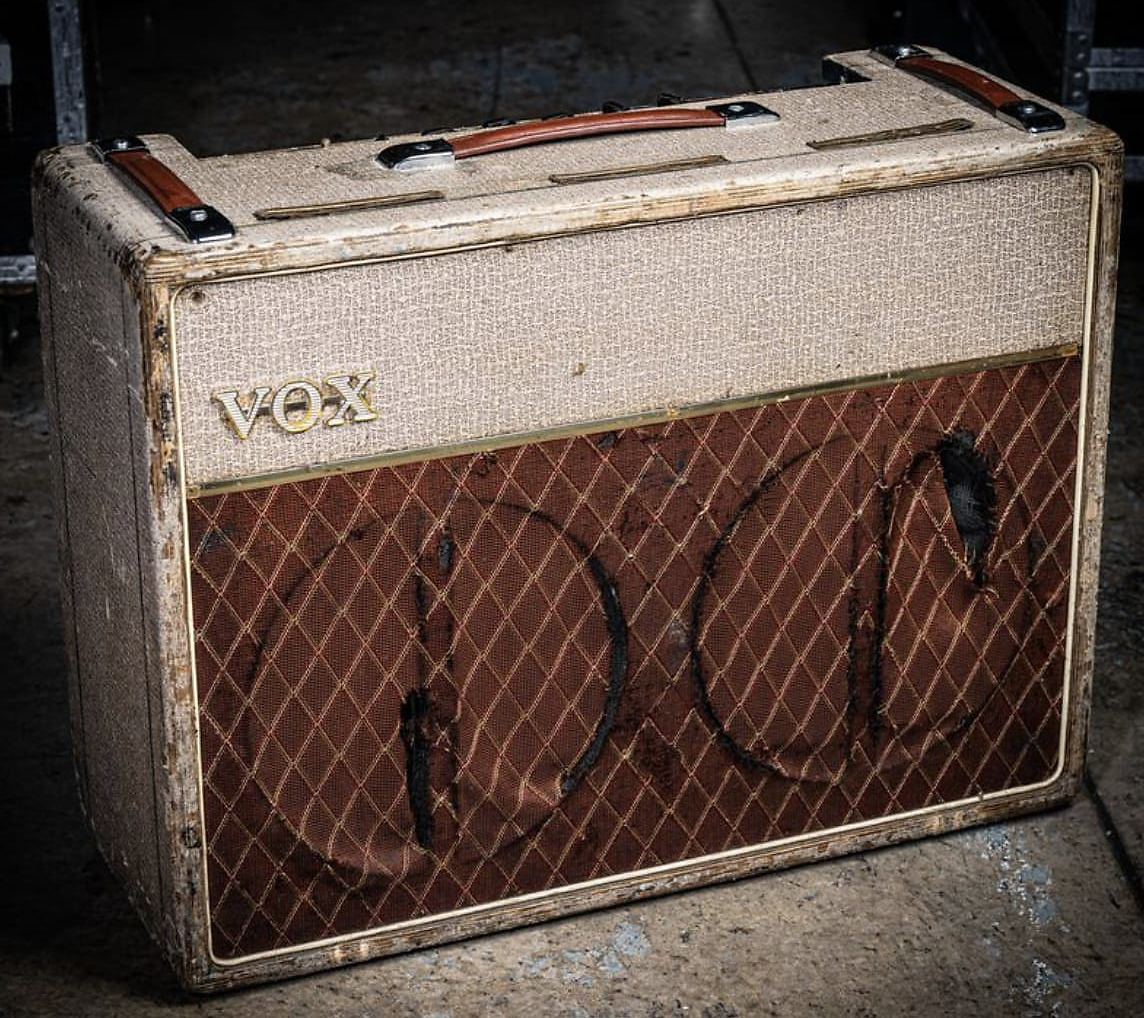

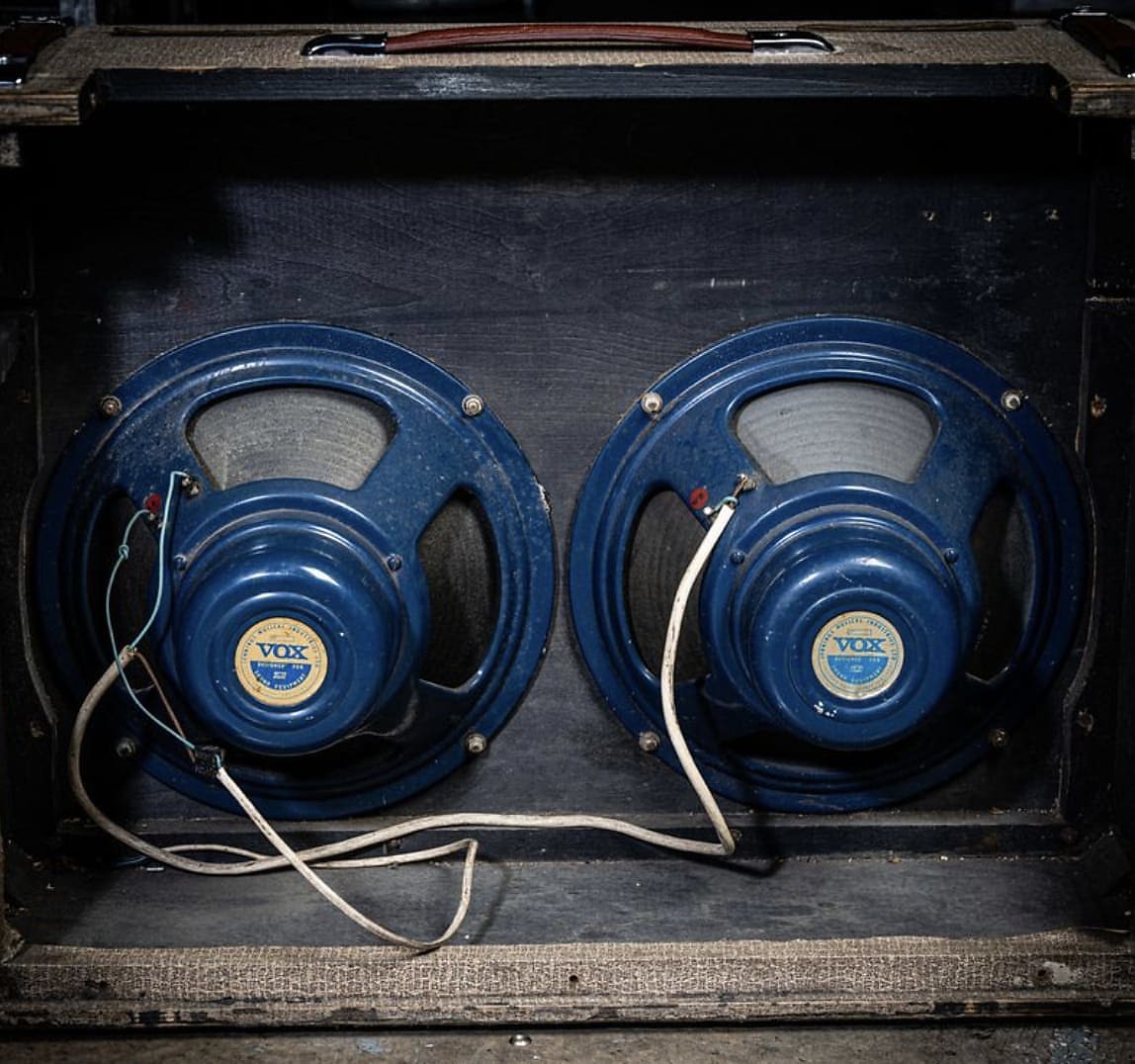

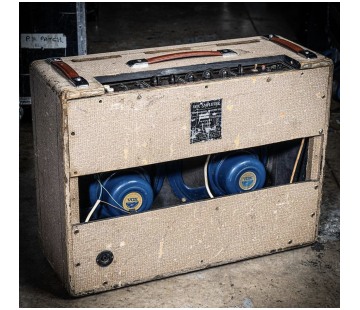

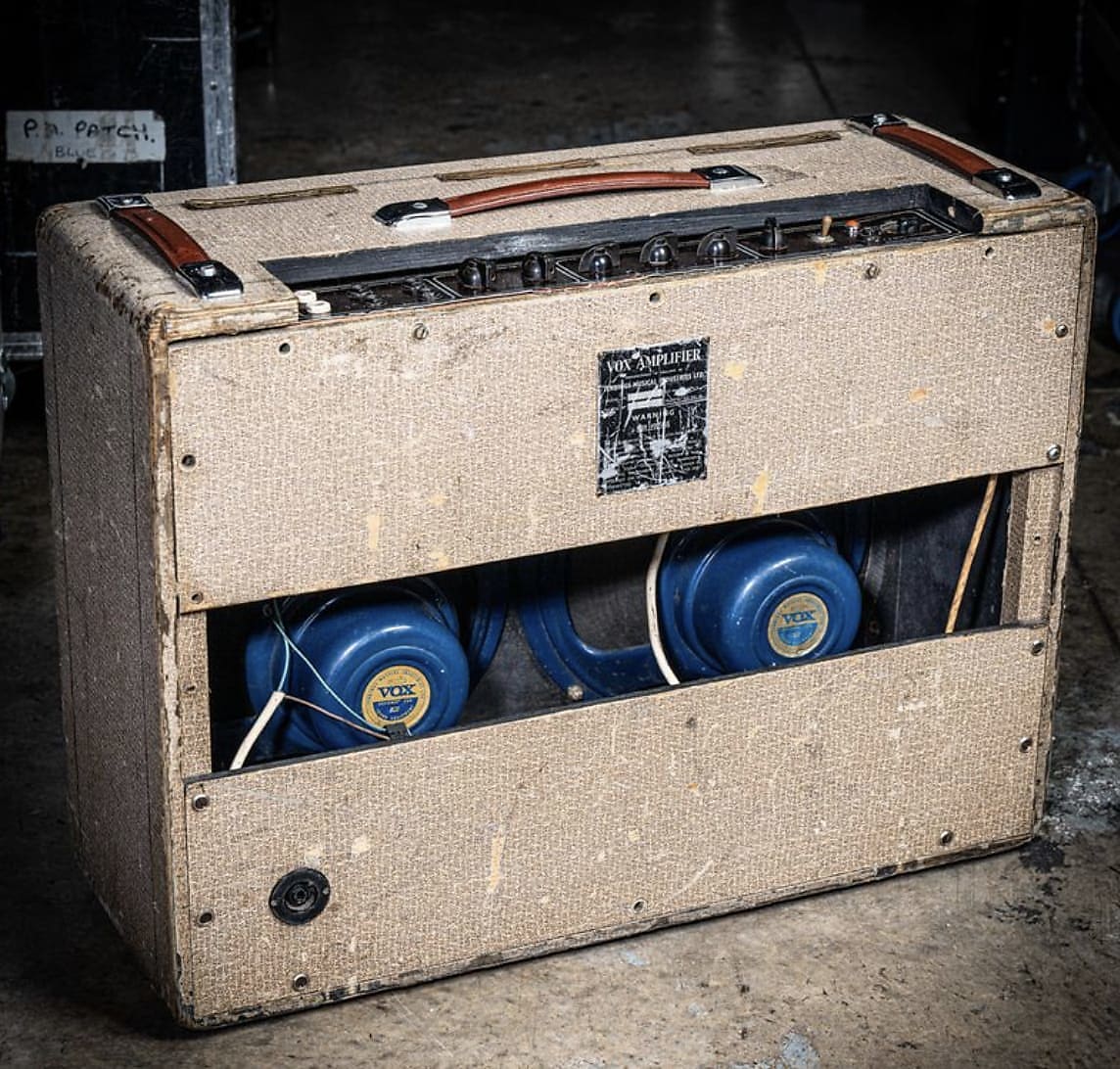

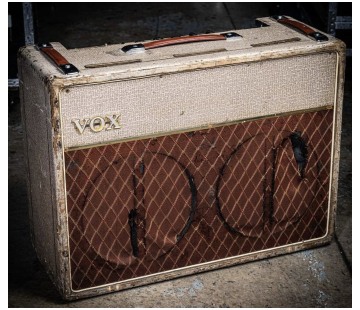

Below, pictures of a fabricated AC30 Twin perhaps made from the remains of a Super Twin from early 1962, the cabinet formed from the speaker cabinet, the chassis of the amplifier section slotted in on added runners. Note the mangled cut-out for the control panel; the rectangular lower back board; and the number of screw holes around the cabinet itself. Also to say the openings for the vents were evidently made much too large.

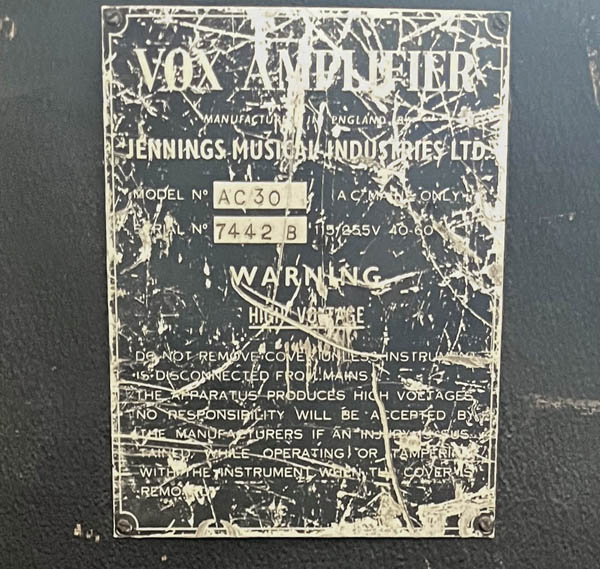

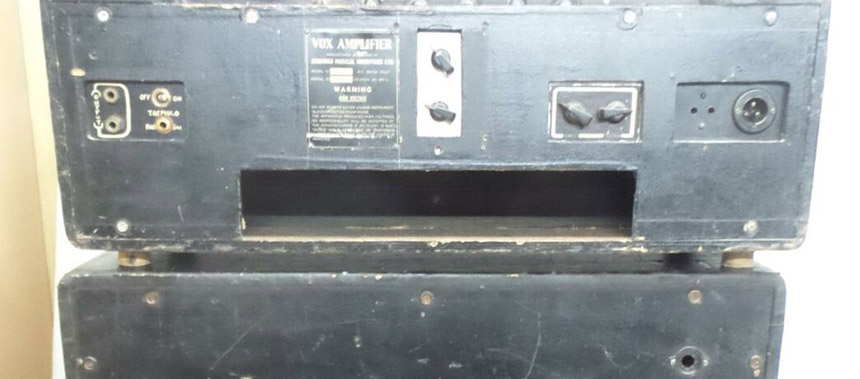

No surprise that the serial number plate on the back should come from a later AC30 (mid 1964). This factitious beige Twin was at one time owned by the "tinkerer" mentioned yesterday.

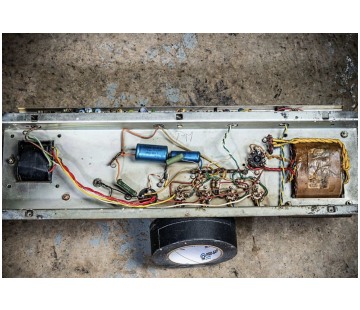

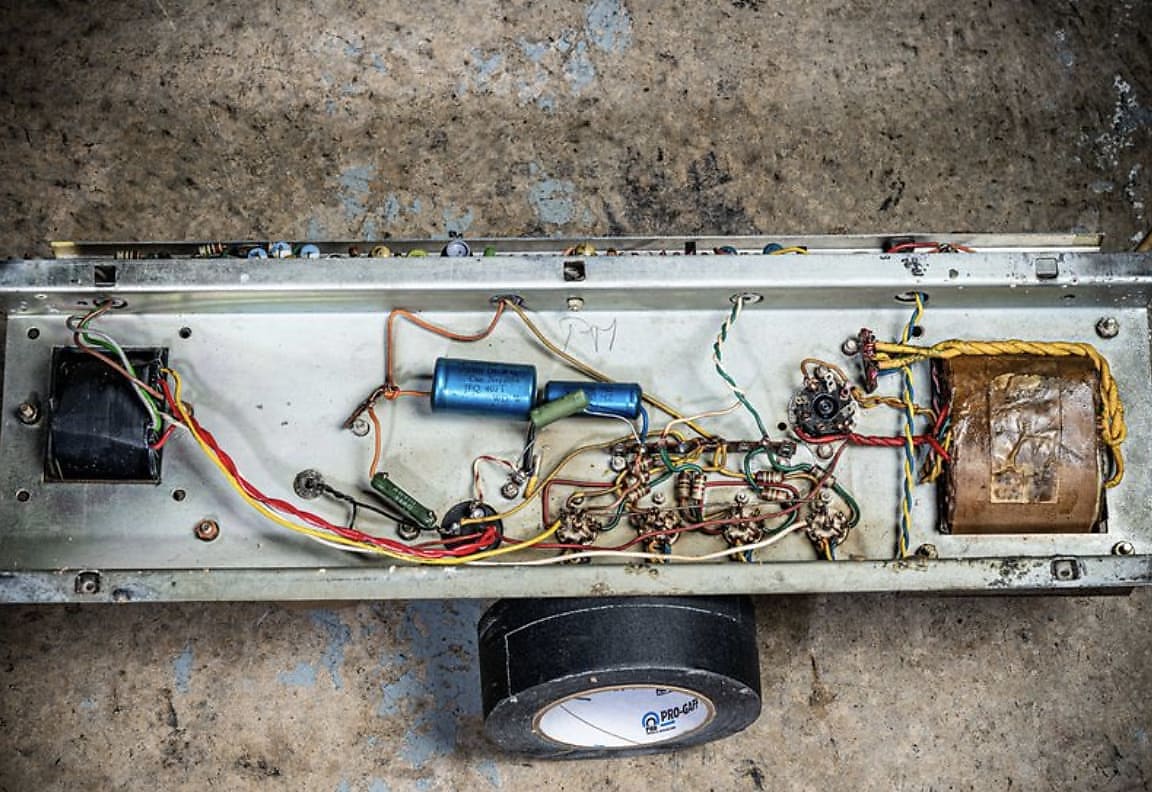

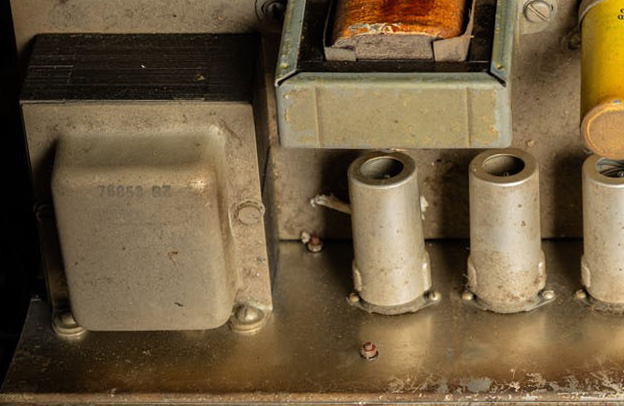

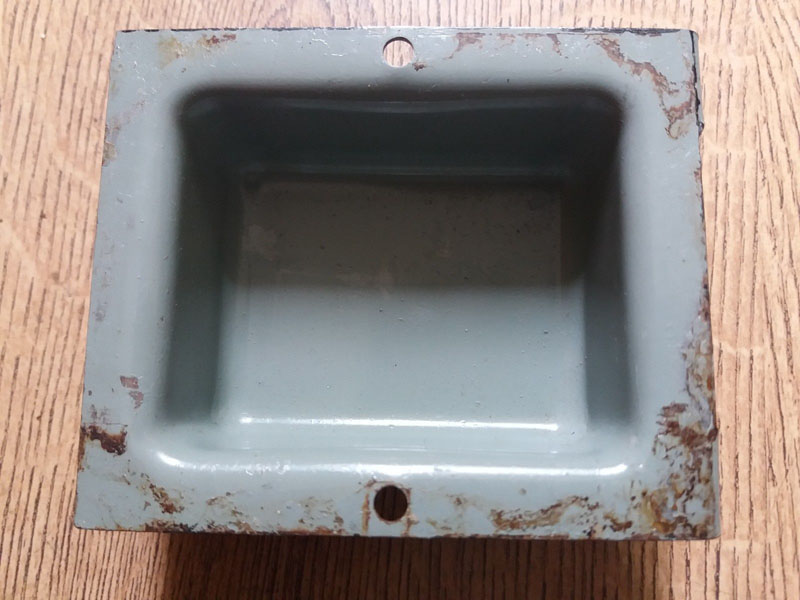

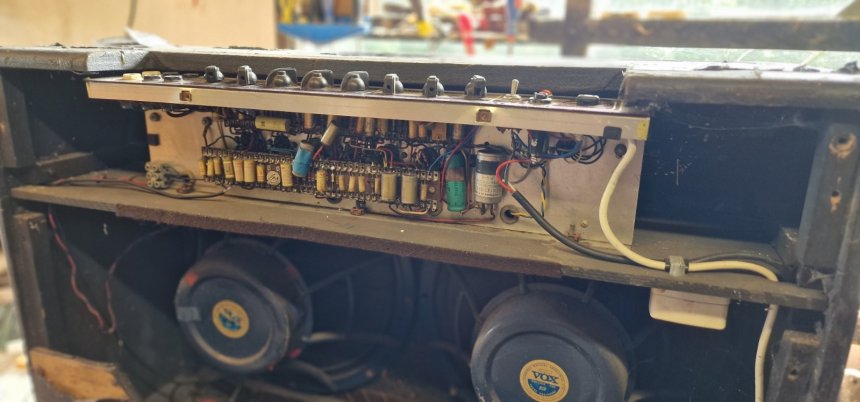

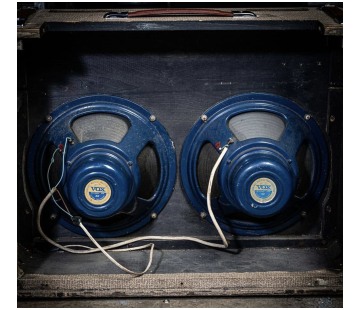

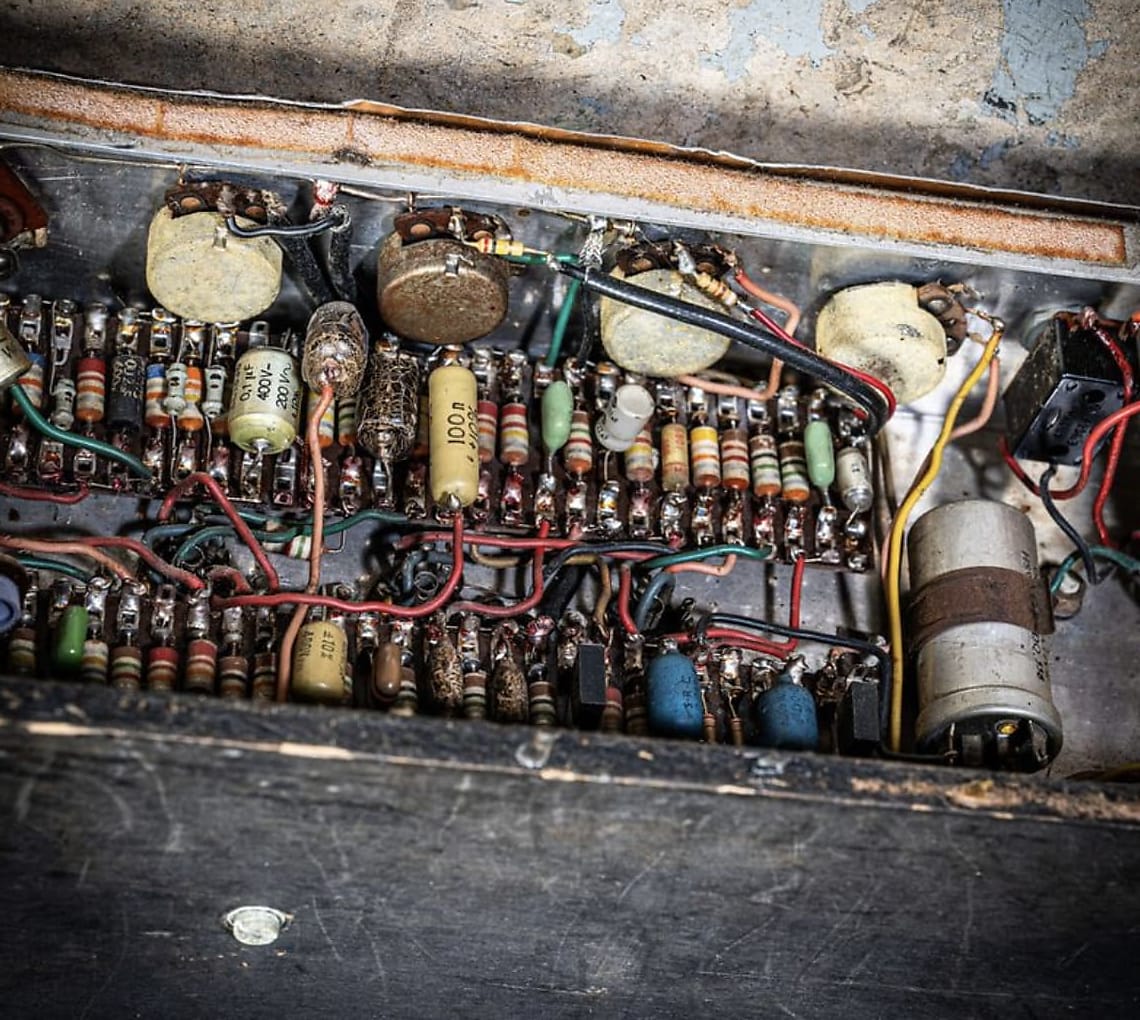

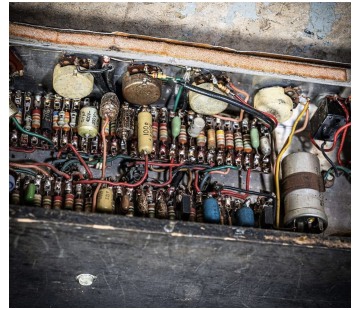

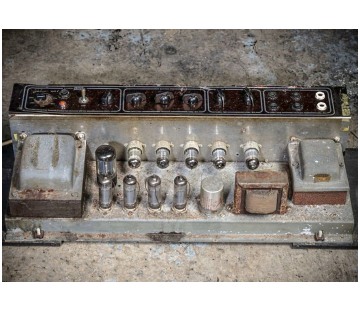

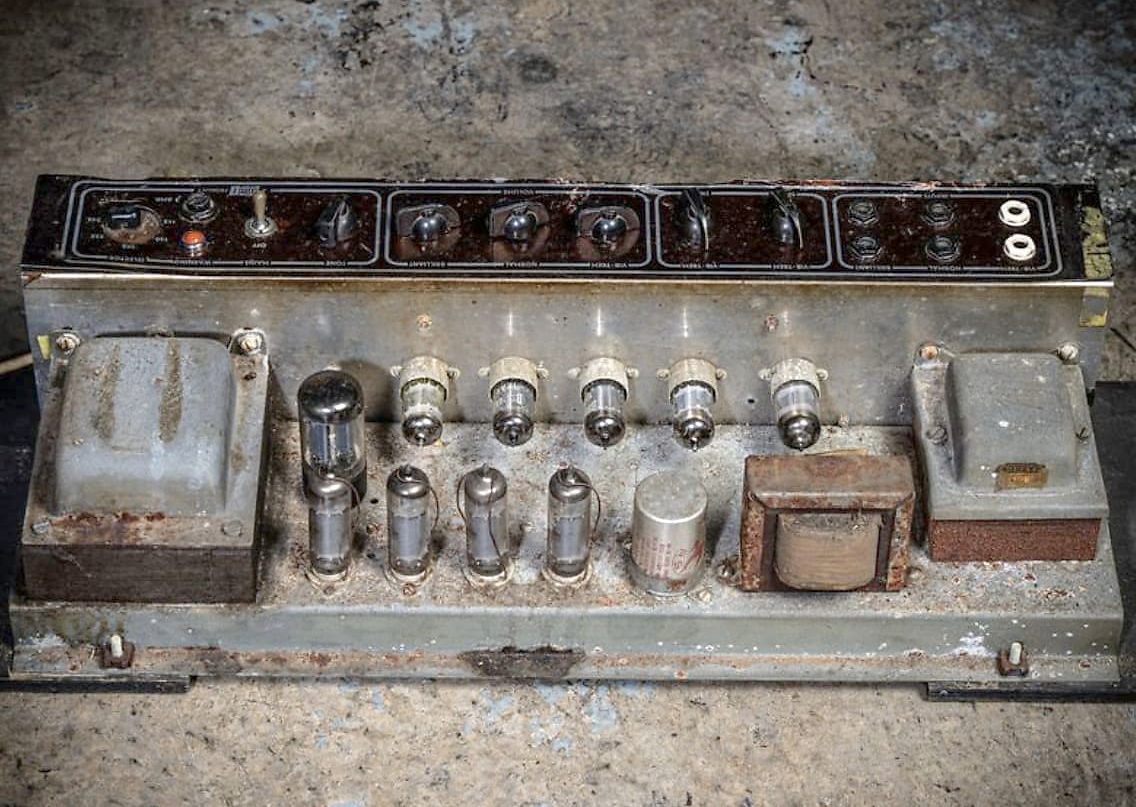

The chassis: - replaced output transformer (a Parmeko from a later AC30 with the Haddon shroud of the original on top); phantom cut-out near the rectifier valve; a number of black Tropydur capacitors still in place. The speaker cabinet: - speakers apparently with the RIC cone code "RIC 1F" followed by an unknown letter. "RIC 1F" is found in early 1962.

21st October

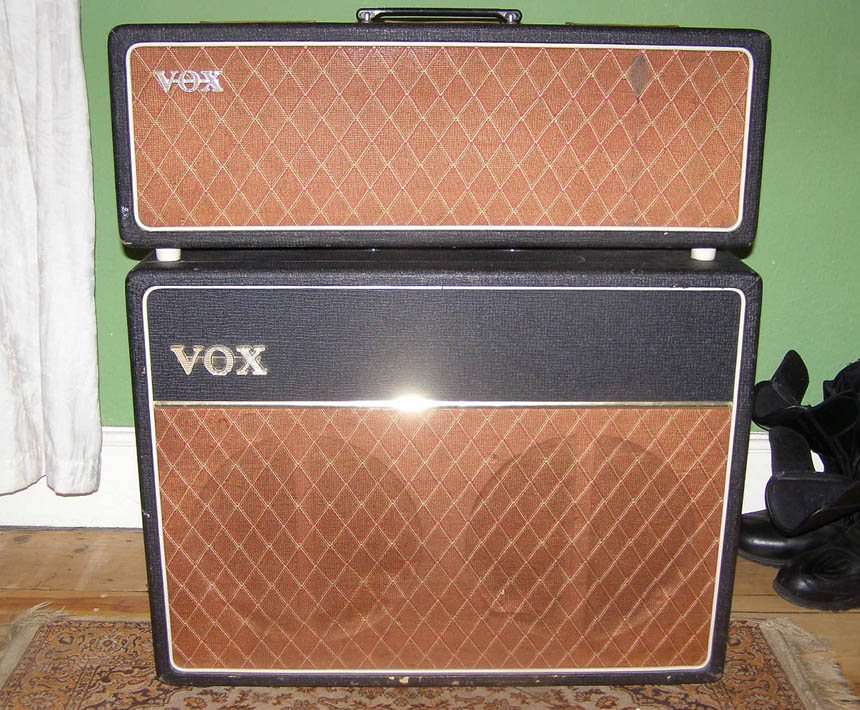

Pictures of a Super Twin speaker cabinet from early 1962, well-used but "un-modified" so far as one can tell, have been added here. Above that entry, shots of an amplifier section / chassis that may have accompanied it from factory, but caution is needed, as the cabinet containing the chassis in view could well be a repro. Chassis (and speaker cabinet) both passed through the hands of a well-known "tinkerer" who seldom disclosed what interventions he had made. Fortunately the speaker cabinet got away scot free.

19th October

There is now an entry for a splendid early AC30 Public Address set on this page. The serial number plate is a bit of a puzzle. More to come. Thanks to Pat for the pictures.

18th October

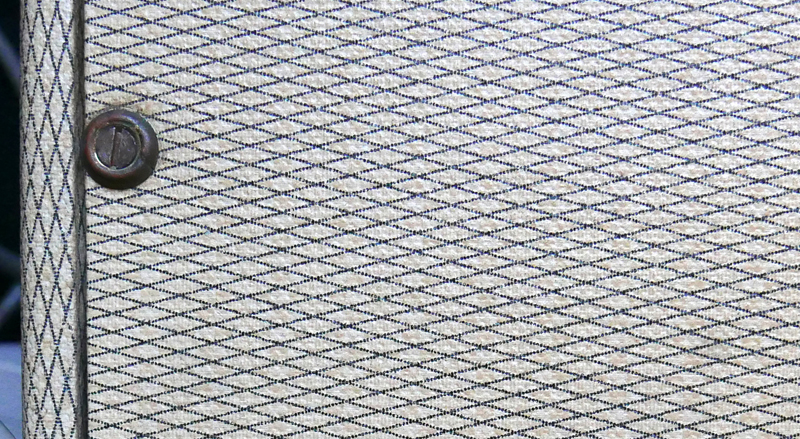

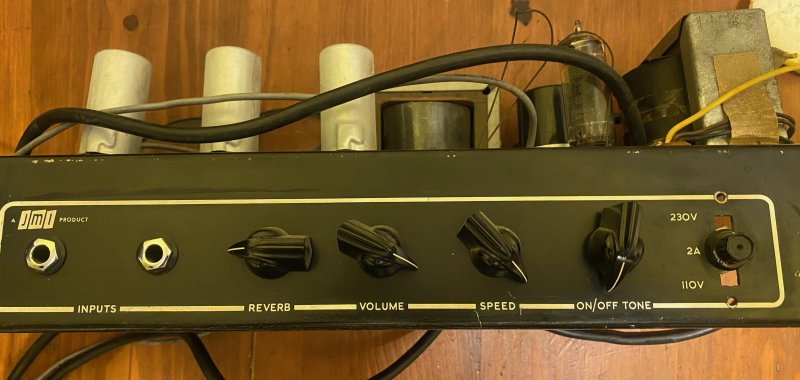

At auction last month, a first-version AC10 Super Reverb Twin amplifier section, copper panel, thin-edged box, reverb electronics and tray removed. Its serial number will have been somewhere in the lower 4000s, late 1963 / early 1964. No component date codes have been visible so far in the pictures.

16th October

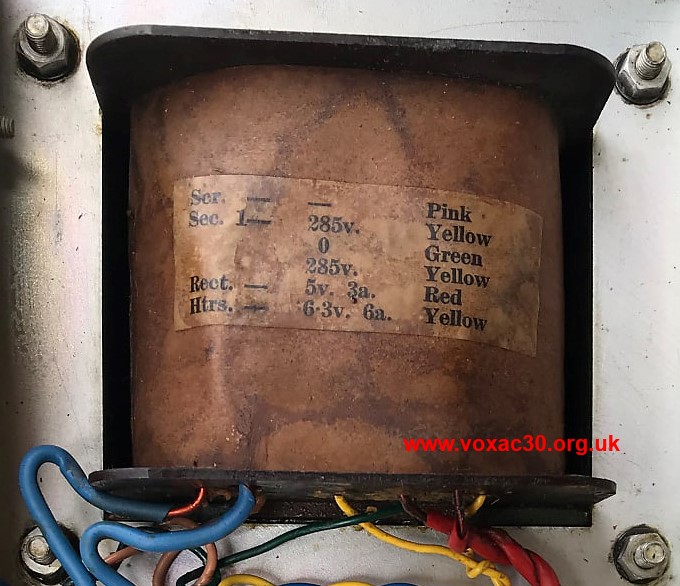

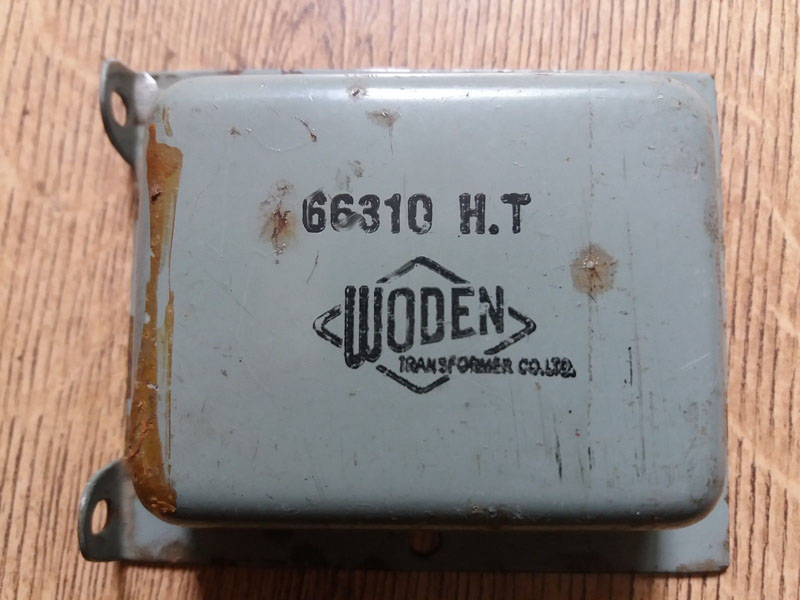

At some point in later 1963, presumably following discussion with JMI, Albion began producing a new form of mains transformer for the AC30. Below, pictures of pre-revision and post-revision units.

The reason for the change? Probably a move to save money and increase speed of production. The new transformers were "open" wound, no side formers. The page on AC30 transformers will be updated shortly.

The earliest example of the new type (known at present) is to be found in AC30 Twin serial number 8857. The older type was still in use when the chassis of serial number 8383 came to be made. Albions chiefly went to Westrex at this time.

Type 1: AC30 Twin serial number 6000.

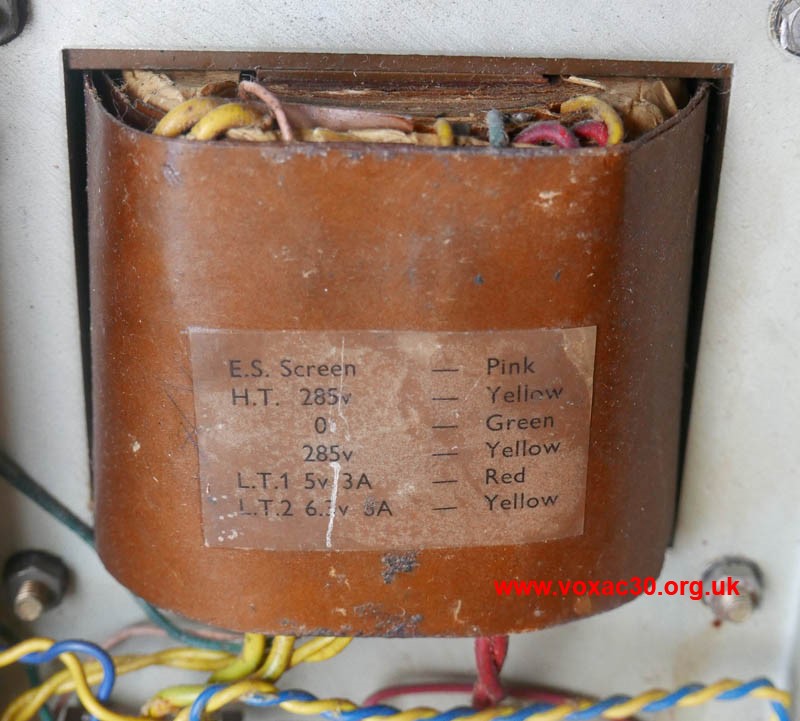

Type 2: AC30 with a serial number in the higher 8000s. A new label came in with the new transformers.

15th October

A couple of Westrex-made chassis, third quarter of 1963, signed off by "RUBY" (in caps) at right in the preamp: serial numbers 8435 and 8445.

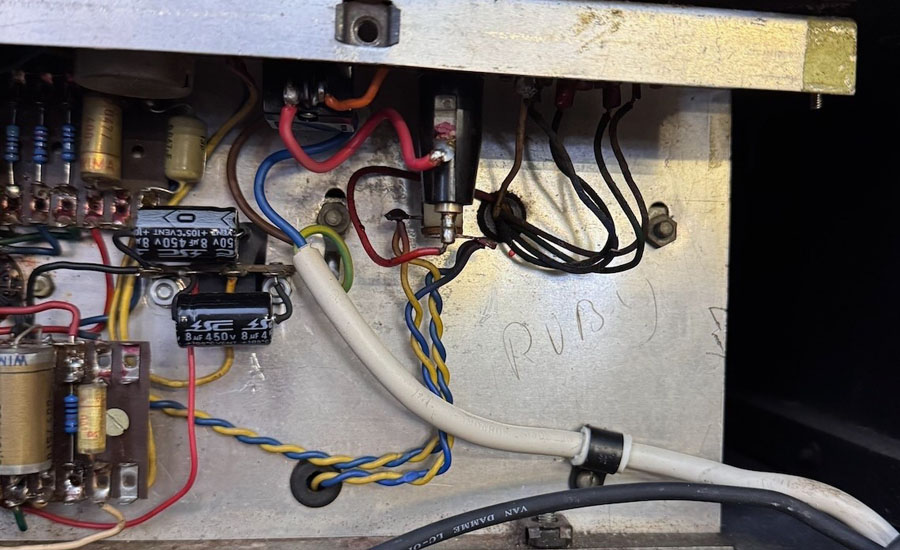

AC30 Twin serial number 8445.

14th October

A preliminary set of notes on a Westrex-made chassis from 1963:

Cathode resistor: - 50R, Welwyn cement, dated "UE" = May 1963.

Potentiometers: - date codes consist of a single "K" only = 1963.

Capacitors: - date codes "UC", "UE", "UF" and "UG" = March, May, June and July, 1963.

Valves: - original yellow-print Mullards, paint codes "KH" and "KI" = August and September 1963.

To date, the earliest chassis (still in its original box) definitively to have come to light with a 50R cathode resistor - the value introduced on the circuit diagram in June 1963 - is that of AC30 serial number 8383. As for the first appearance of the 50R resistor, the high 7000s still seems most likely.

The amp from which the chassis pictured below came is likely to have had a number in the higher 8000s.

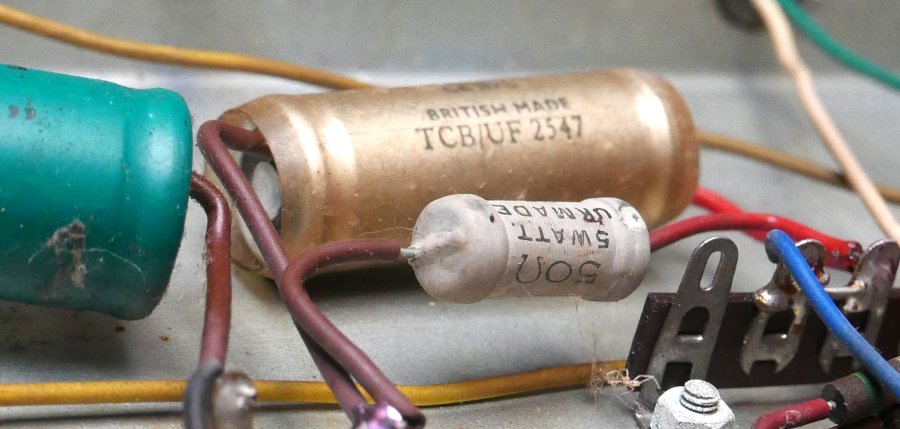

50R cathode resistor.

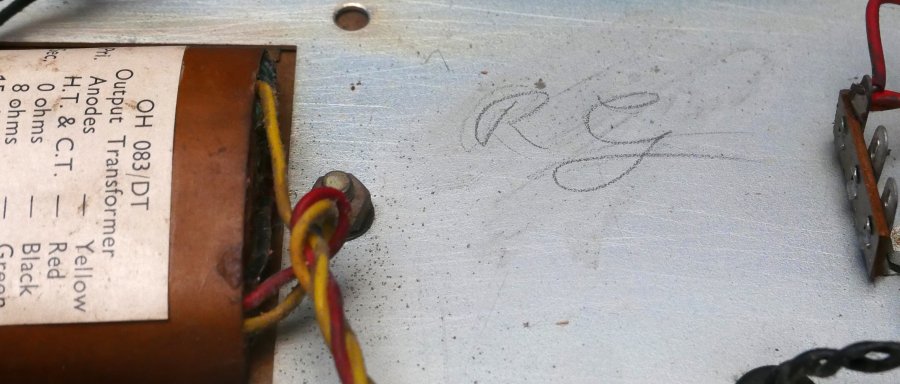

Power section and preamp signed off in pencil by "RG".

13th October

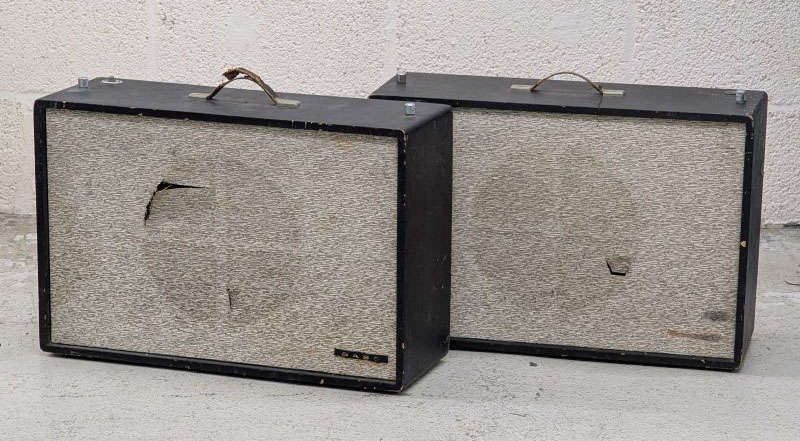

A couple of Domino Bass speaker cabinets from 1964 recently sold (September 2026), both with a single 12" Fane, one in silver/grey hammerite, the other in light blue.

Interesting to see two together. Stray amplifier sections are generally much more common these days.

12th October

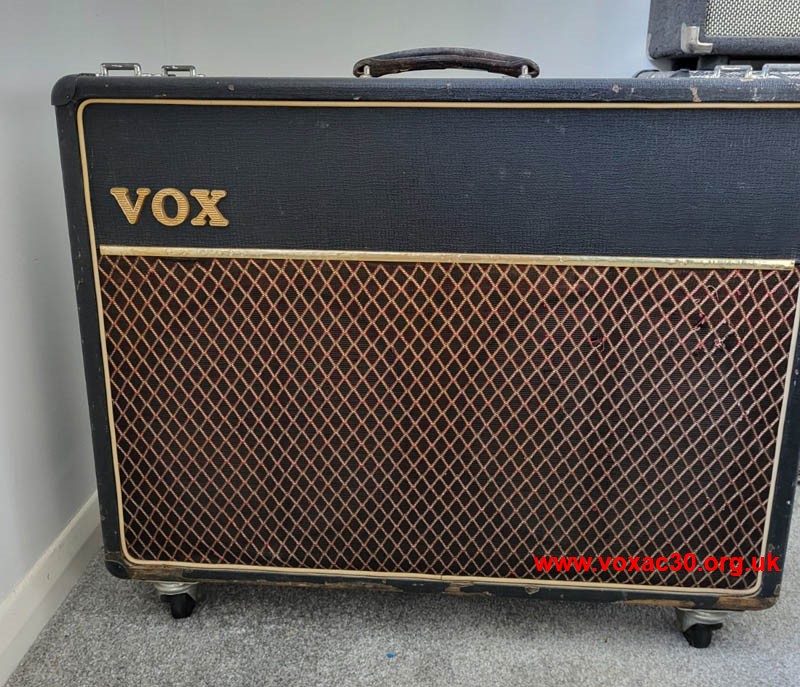

A bits-and-pieces AC30 that appeared earlier this year, chassis from later 1964. At least two types of small-diamond grille cloth were available in the 1960s and 1970s. The one below is fairly rough, much as '70s Rose-Morris Vox cloth. The other type is simply a smaller version of standard '60s cloth commissioned by JMI. To date two JMI speaker cabinets have turned up with the latter.

11th October

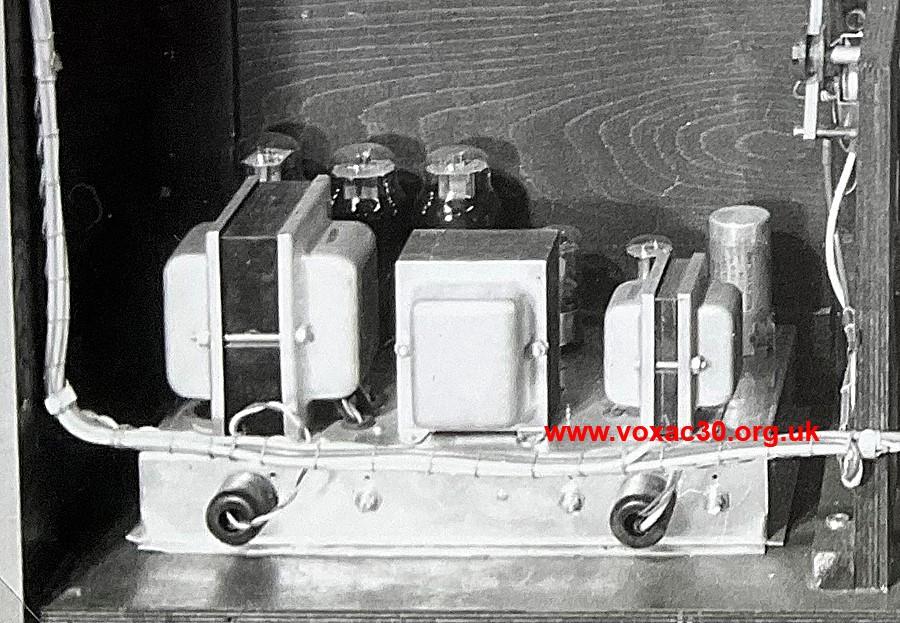

Thanks again to Toni, a detail of a "30 Watt Amplifier" in situ in an early Jennings Organ, in all likelihood another "J52". The photo above this one in Derek's album is unrelated: a "Model A" from c. 1958.

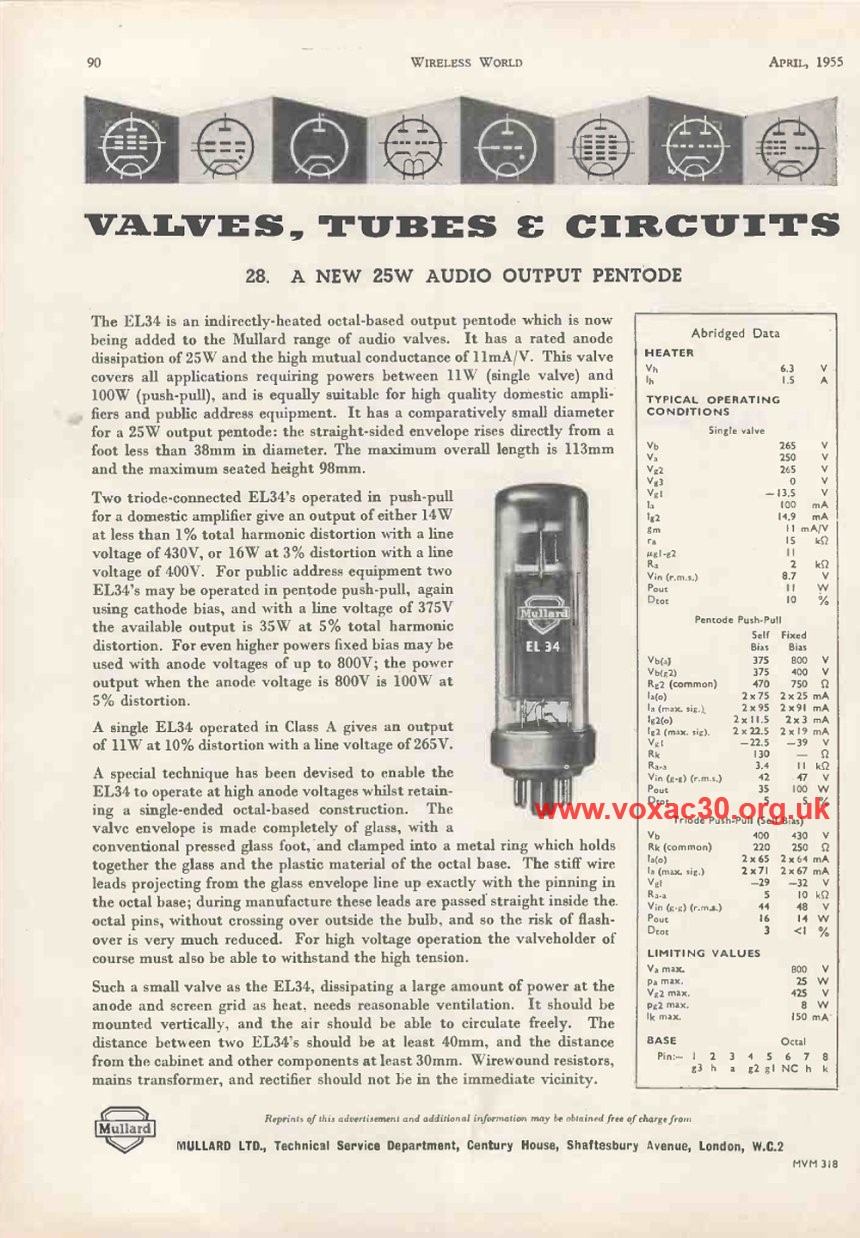

The main power valves are of the old-style "coke bottle" variety - type to be confirmed when a copy of the earliest circuit diagram for the "30 Watt Amplifier" is to hand. The sheet's number is OOS-016 (undated). Later versions of the diagram give EL34s.

Note that all five valve sockets are populated. The later circuit had only four valves.

If the rectifier far left is an old-style GZ32, then the power valves are unlikely to be Mullard EL37s (and related types). The GZ32 is 100mm tall, EL37s 117mm. "50 Watt Amplifiers" had larger transformers and an additional pair of filter capacitors on the upper chassis.

A "30 Watt Amplifier", c. 1956, probably from a "V" series organ. The chassis has five valve sockets, but one is unwired. Further pictures on this page.

10th October

Thanks to Toni, a detail from a photo taken by Derek Underdown at Dartford Road, c. 1954: a Jennings "J52" organ, the transformers of its "50 Watt Amplifier" section made by Partridge, as in the case of the Power Pack from c. 1957 that came to light recently.

At present, it looks as though the audio amplifiers of the "B" series organs (as the "J52" was) did not differ in any major respect from the audio amplifiers of the "V" series, introduced in mid 1956.

The Haddon output transformers that were adopted later for the "50 Watt Amplifier" do seem to have had a slightly smaller lamination stack than their (earlier) Partridge equivalents, however.

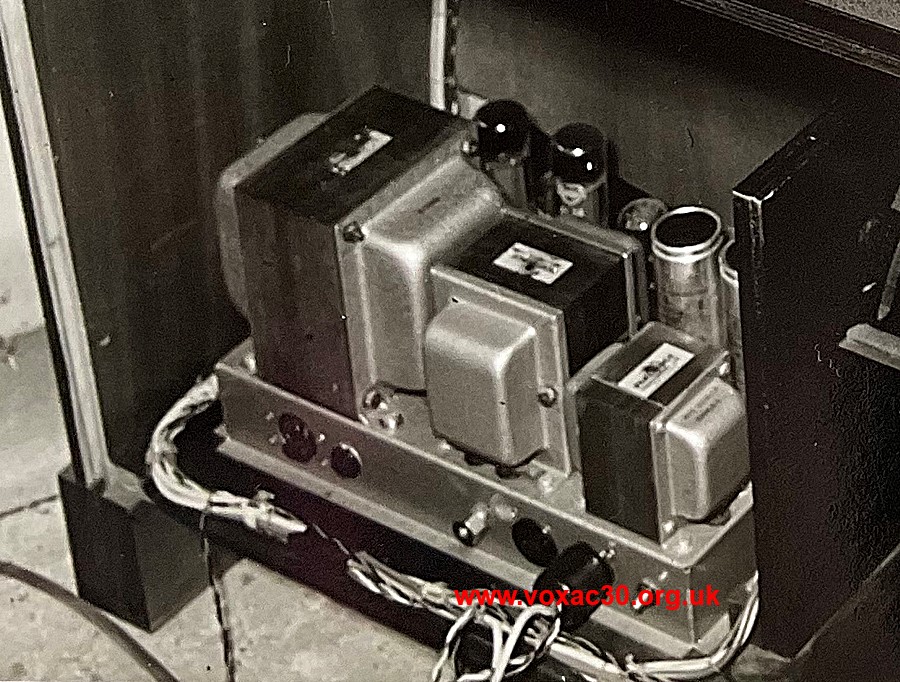

From the lower of two pictures on a page in Derek Underdown's album. The upper is of the J52's keyboard.

A Jennings Organ "Power Pack", c. 1957.

8th October

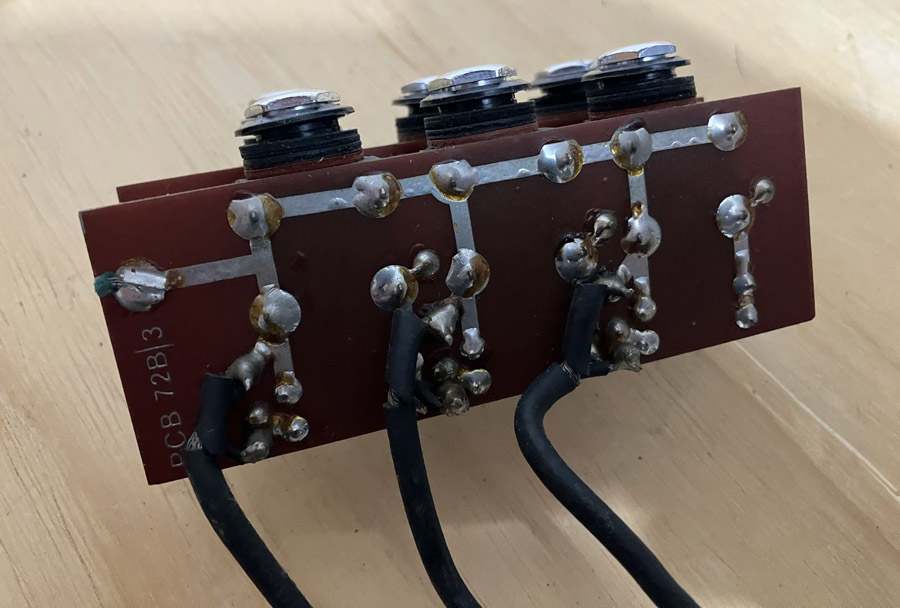

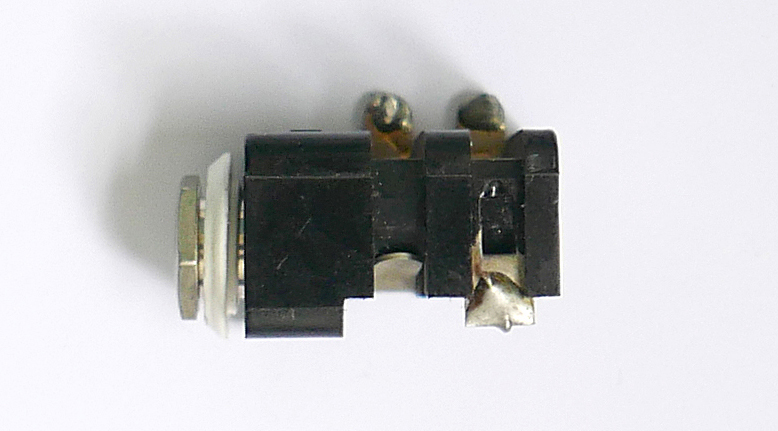

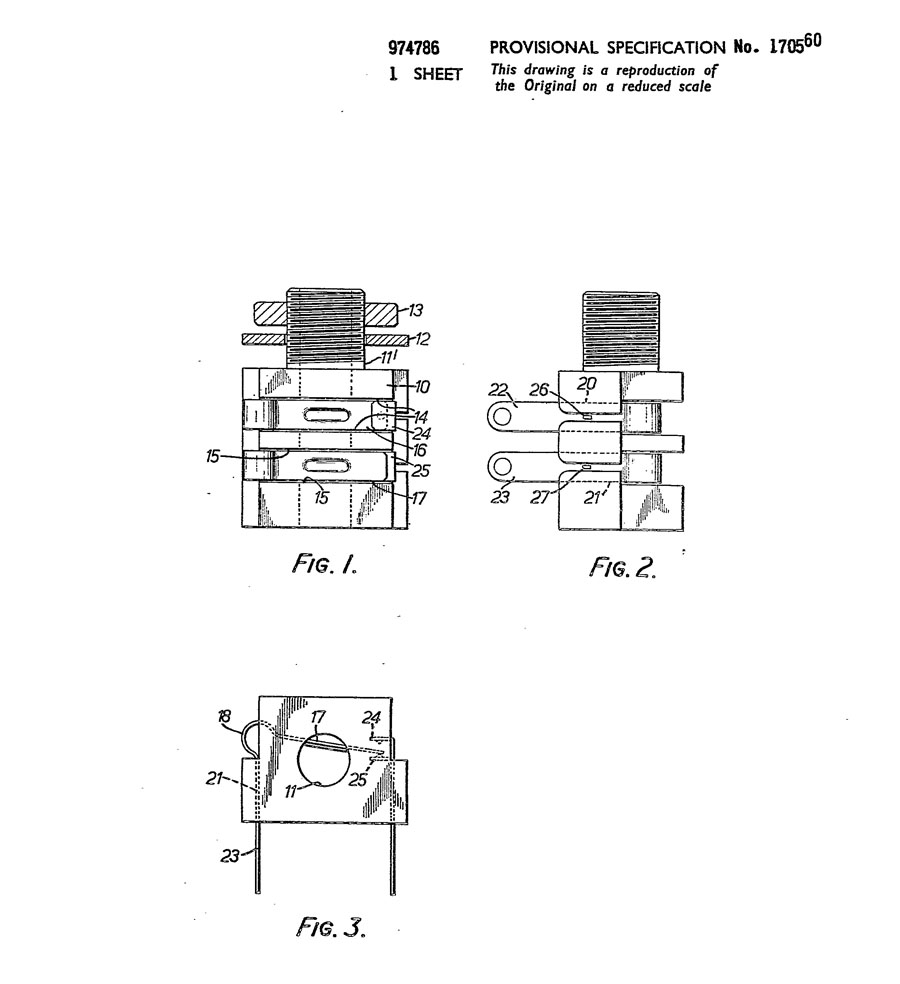

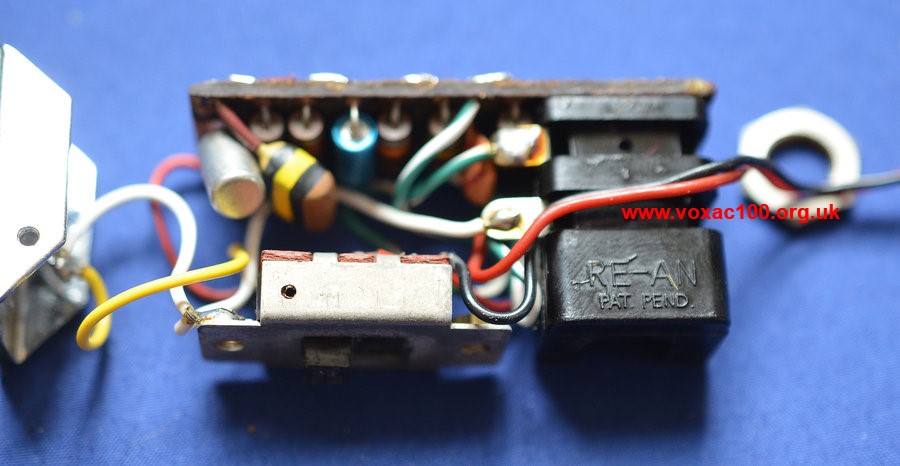

A useful detail of the lower input jack board from an AC30 produced at the Birch Stolec factory in St-Leonards-on-Sea, late 1972.

PCB 72B/3.

7th October

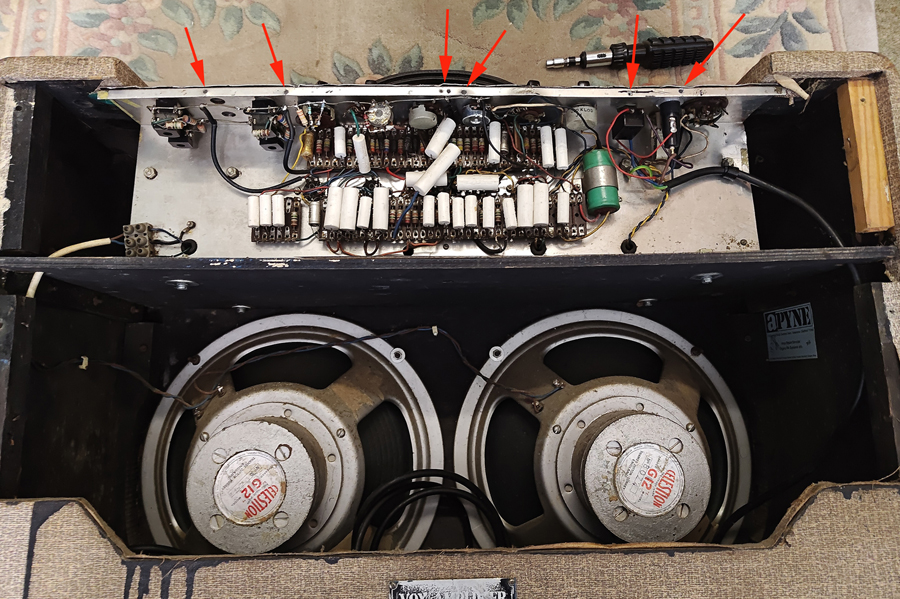

Immediately below, a shot of the chassis of AC30/6 serial number 4478, mentioned yesterday. One of the drawbacks of the thin lip of aluminium at back in these Pre-LOC amps was that the holes for the back board screws often ruptured, necessitating the making of new ones. A good (initial) means of assessing whether a chassis is original to the cabinet that houses it is to check whether the holes on the lip line up with the holes in the board.

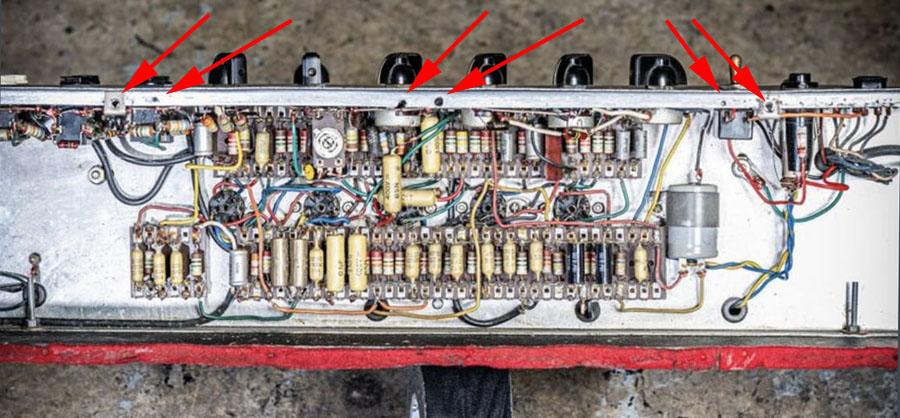

Holes along the lip made for the back boards of different cabs. The two outer ones (with spire nuts) correspond with the screw holes on the board of the repro cab with which the chassis was sold.

Thanks to Steve, a shot of a superb but strange AC30/4 in part from late 1960 or early 1961. The amp passed through Alan Pyne's hands twice in the late 1970s, so some of the strangeness at least is accounted for (split-front cabinet, brown grille cloth on sideways, for instance).

The back board has only three holes, corresponding with the two outer holes either side on the lip and one of the centre ones.

6th October

Pictures of the chassis of AC30/6 serial number 4478 as it stood in December 2025 have been added on this page. It was sold in a repro split-front cabinet, speakers and serial number plate from an amp made in 1963.

6th October

5th October

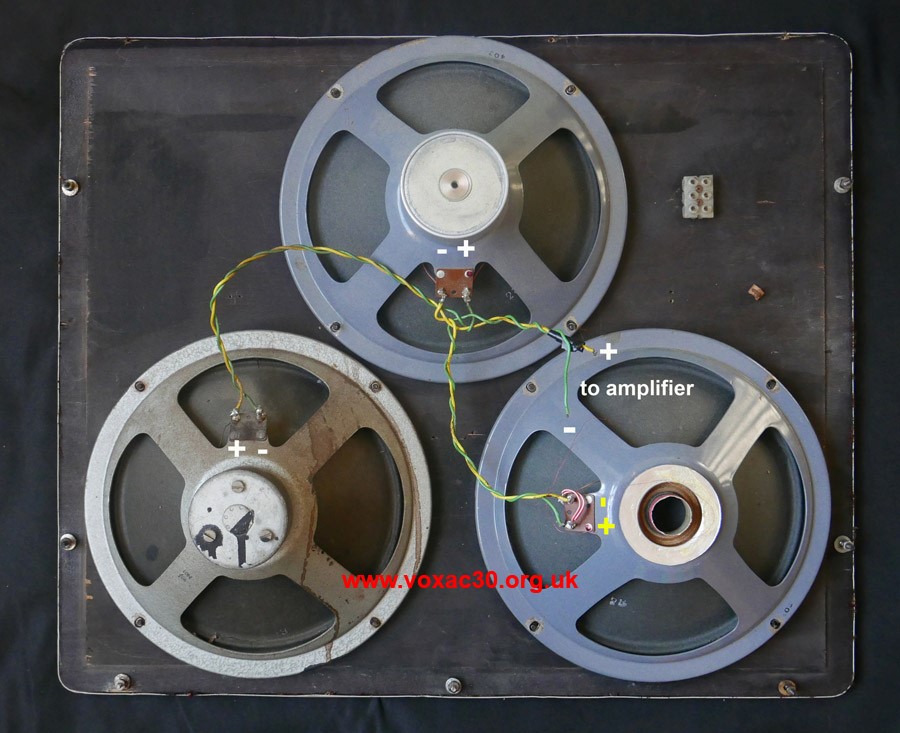

The speakers of a slightly bashed late AC30 Lightweight. Only one is still in working order. The wiring loom has been slightly truncated but is the original. Originally, three Elac 10N/86s wired in series for a total of 9-12 ohms. Elac 10N/86s can measure anywhere from 3.1 to 3.8 ohms (DC resistance)

4th October

The page on single speaker AC/30s has been updated (entries for serial numbers 4072 and a late amp with a white control panel), and corrected (entry for serial number 4060). Further details and pictures to be added shortly.

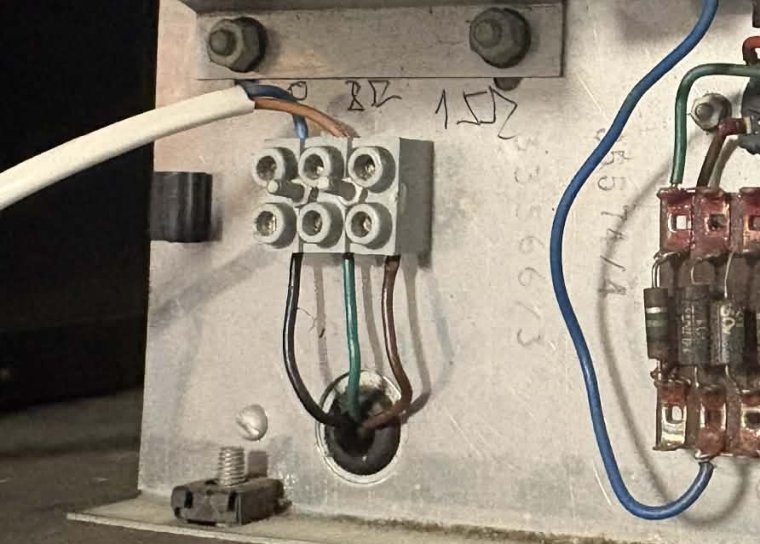

The AC1/15 mentioned yesterday is serial number 3537, previously illustrated without its cabinet, which lacks its original back panel. "3537" is stamped on the lip of the chassis and noted in pencil on the supporting board.

3rd October

Recently come to light, a further early AC1/15 (1958), blue hammerite chassis, serial number in the range 3500 to 3580. Details to follow.

2nd October

The page on early Jennings amplifiers has been tidied up and updated. There are two main categories of amplifier: those that were "bought in" to resell (early 1950s); and those produced by or specially for Jennings (from late 1951 into the mid 1950s).

Further material will be added in due course. If the page gets too long, it may be necessary to divide things up further (and perhaps create a page for the mid '50s alone).

1st October

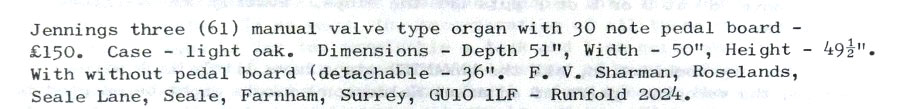

A small ad in "Electronic Organ Magazine", January 1977: a Jennings "valve type" organ with three full manuals and 30 note pedal board. The unit was certainly not a "Model G", which measured 61" x 84" x 68". The only possible candidate would seem to be some version - finished in oak - of the organ pictured in the music trade press in 1955.

1955, demonstration model.

30th September

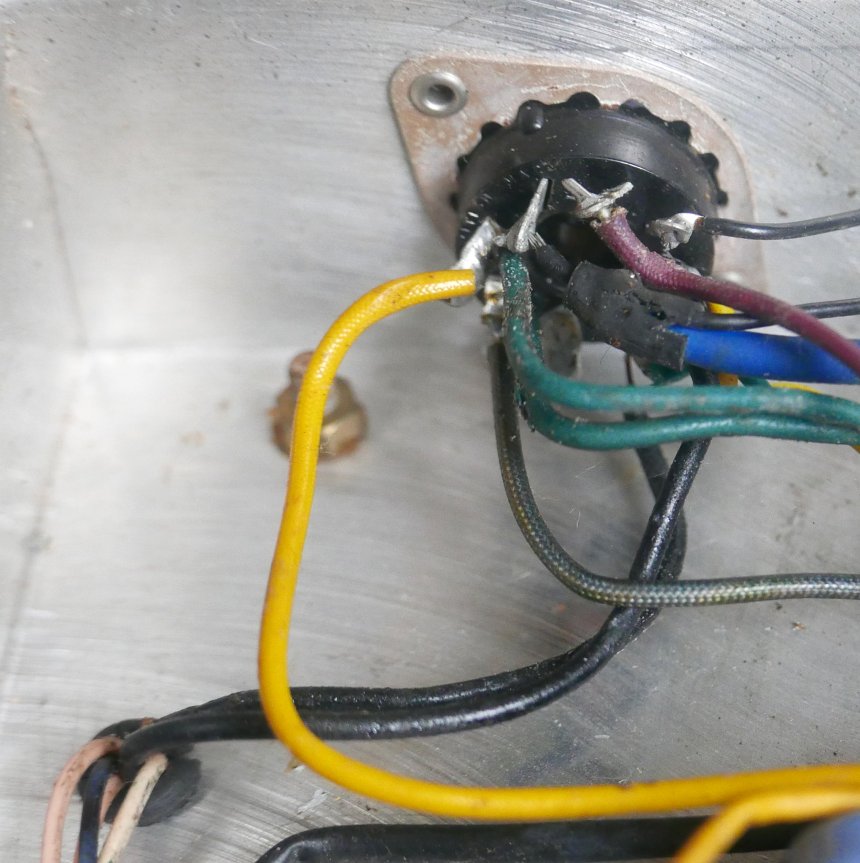

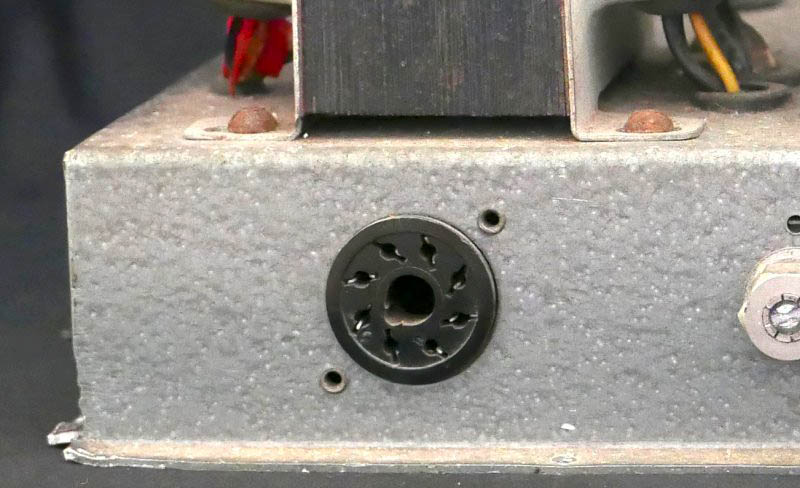

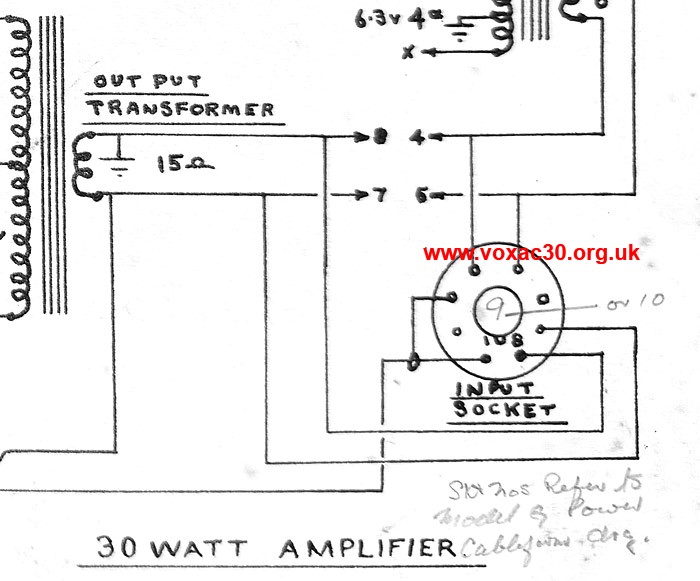

A note on the main octal socket on the 30 Watt Organ Amplifier. As one can see from the circuit diagram, the socket served two principal purposes: to bring the mains supply to the mains transformer; and to feed the amplified signal from the output transformer to the speakers.

Some care will have been needed when wiring the (octal) plug up, as the neutral and live lines of the mains transformer were both black, and the "live" and common of the output transformer both green.

Fortunately the pins of octal plugs are numbered to correspond with the numbered solder tags on the socket, but still, wiring up was not a job for the inattentive. Get one wire wrong, and no end of trouble might ensue.

It is likely that JMI had cableform diagrams setting out the detailed arrangement of both socket and plug. Note that reference is made on the sheet below to the "Power Cableform Diag." for the "Model G" organ.

In contrast with the 50 Watt Organ Amplifier, the 30 Watt model had no voltage selector.

Live and neutral of the mains transformer (disappearing into the chassis pass-through hole) are both black. So for that matter is one of the earths, but that may belong to one of the windings of the secondary.

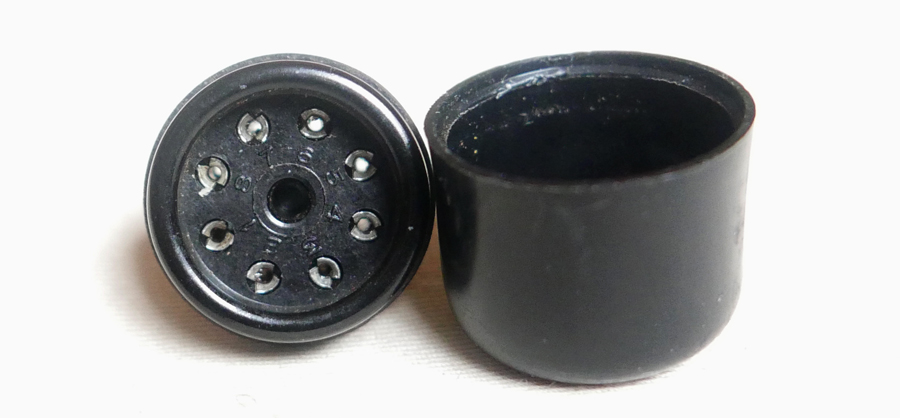

Octal plug with its top off. One can just make out the numbering of the pins on its base.

29th September

A quick shot of a VSEL/VSL sheet, ICC/011, for the preset panel cableform (cabling loom) of the Continental 300 and 301 organs. Where JMI is concerned, the term "cableform" goes back at least as far as 1956/1957 (large-scale sheets for the "Model G" organ).

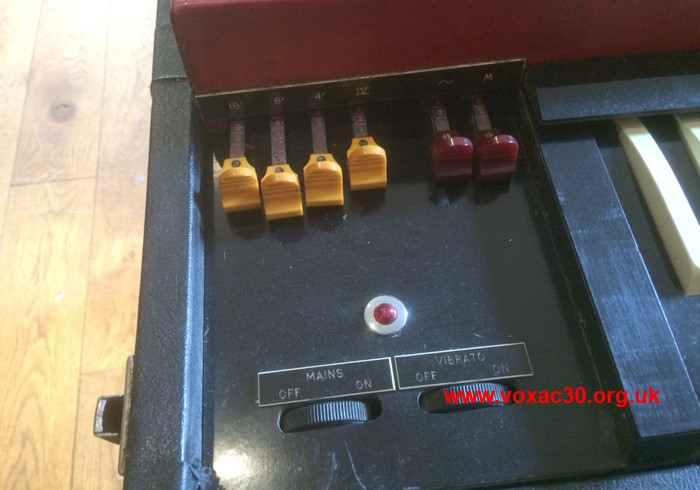

Similar diagrams will have been produced (in late 1962 / early 1963) for early Continentals. Along with much else from that time, these have altogether disappeared from view.

The prefix "ICC" presumably references "Continental" and "cableform", but the significance of the "I" is unknown.

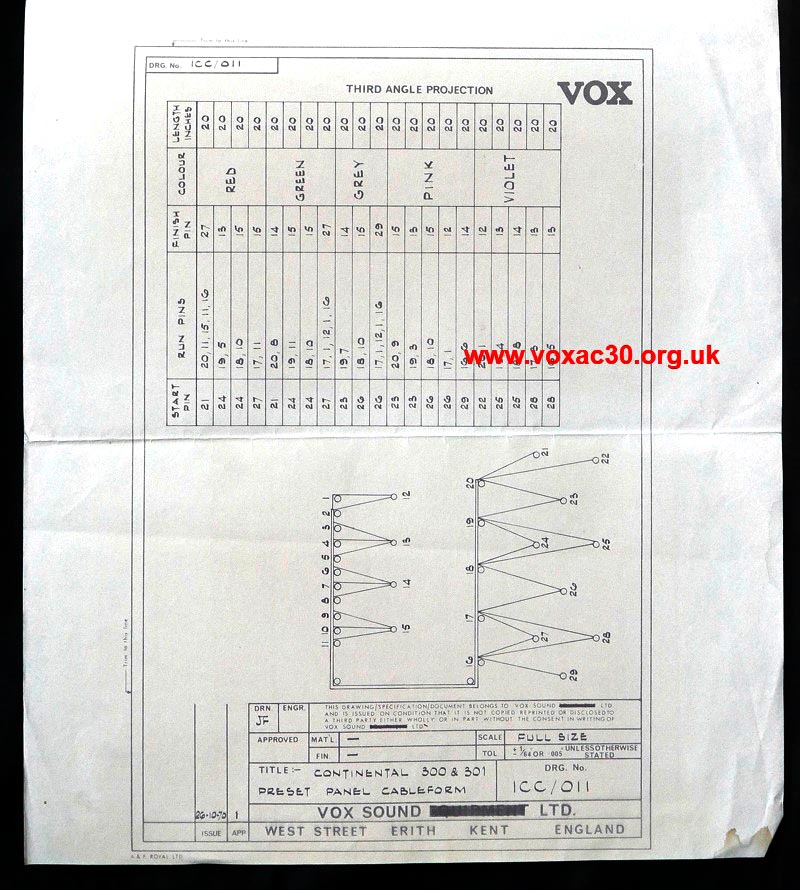

Sheet ICC/011, dated October 1970.

28th September

A new page has been started on the printed circuit boards developed by JMI for its Continental organs, mid 1964 to early 1968.

JMI component layout sheet TO/049, dated November 1965.

The page on Continental circuit diagrams will need some gentle updating to take account of material encompassed on the new page.

27th September

A provisional list of early JMI printed circuit boards for Vox transistor organs. It should be possible to fill the various gaps in the sequence (as it stands at present) in due course:

JMI 46 - Generator / Divider board (component layout drawn Nov. 1965).

JMI 47 - Vibrato board (component layout drawn Sept. 1965).

JMI 48 - Preamp board (component layout drawn Oct. 1965).

JMI 49 - Repeat Percussion board (revised version, 1965/1966), circuit published in "Electronic Organ Magazine", April 1969.

JMI 50 - currently unknown.

JMI 51 - Guitar Organ, Generator / Divider board.

JMI 52A-52E - Guitar Organ, voicing circuits.

JMI 53S - Vibrato Board, a revised version later 1966 (?), circuit published in "Electronic Organ Magazine", April 1969.

JMI 54 to JMI 59 - currently unknown.

JMI 60 - Guitar Organ, mother board.

Below, the notes on JMI 53S - a revised Vibrato circuit board - published in "Electronic Organ Magazine", April 1969. The standard Vibrato board was JMI 47.

26th September

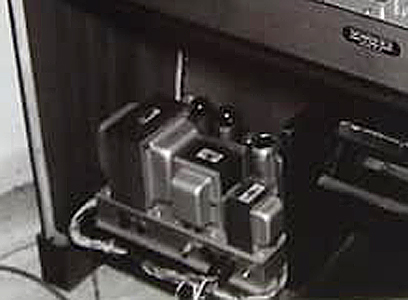

A detail of a photo taken by Derek Underdown in 1954 at 115 Dartford Road. The transformers appear to have Partridge labels (certainly not Haddon) as on the Power Pack illustrated in the entry below for 21st September. It may be possible to get a better image in due course.

Also to note that the "TESTED" stamp on the underside of the Power Pack reads "ORECO", as on the Power Pack of a Jennings "Model C" organ that survives intact.

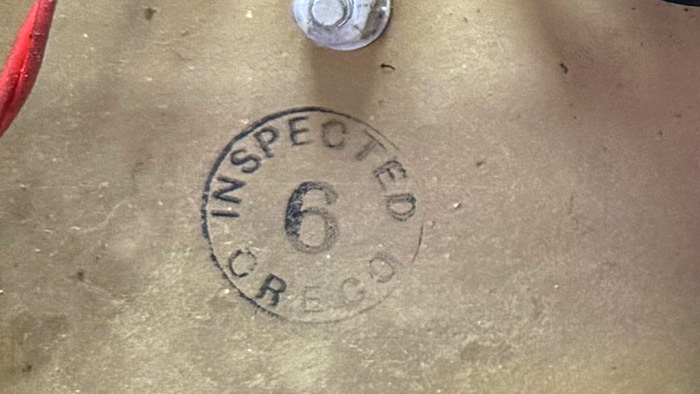

Detail of the Power Pack in an intact Jennings "Model C" organ. Thanks to Steve for the picture.

25th September

Jumping forward in time, a detail from a diagram (GDO-012) for the preamp circuit of Riviera and Continental organs, devised by JMI in November 1967. The sheet as we have it was drawn out by "Vox Sound Eqipment Limited" in April 1969 though and updated by "Vox Sound Limited" in late 1970. "GDO" probably stands for something along the lines of "General Diagram Organs".

A copy of the whole will be made available in due course.

24th September (2)

Rear view of the Jennings "Model A" organ mentioned yesterday, the 30 Watt Amplifier to the left of the central well for the volume pedal, a Power Pack no. 1 or no. 2, with a heater supply transformer finished in blue hammerite similar to that used for early AC1/15 chassis, to the right. The labour in these organs was naturally the wiring up.

Thanks to Tony, detail from a photo taken in the late 1990s / early 2000s.

Some facts and figures: the chassis of the 30 Watt Amplifier was slightly larger than that of the Power Packs. It measured: 13 1/8" long; 7 3/4" wide; and 2" tall. Sockets were provided for five valves though the circuit required only four: a GZ32 rectifer, two EL34s, and a 6SN7. The vacant space (corresponding with the fifth socket) can be seen in the photo above. Compare with the shots of the 30 Watt Amplifier below.

The fifth valve socket is completely unwired. It is likely that chassis were prepared in this way to allow for the assembly of a 50 Watt Amplifier, which did require five valves.

24th September

Below, a Jennings 30 Watt Organ Amplifier, probably from c. 1955-1956, one of two currently known to survive (the other still in place in a "Model A" organ). Derek Underdown later used the circuit - his original design - as the basis for the power section of the single-speaker AC2/30.

He drew from both it and the 50 Watt Organ Amplifier too when he came to design the power section of the Vox AC50 in the latter part of 1963.

Left to right, Haddon mains and output transformers and choke. As in the case of the Jennings Organ Power Pack no. 3 illustrated a few days ago, valve sockets and other hardware are for the most part riveted onto the chassis plinth.

Sockets left to right: mains input and audio out (to speakers); bias adjustment; a blanked off hole (for another pot?); signal in and mains out; volume preset pot.

The circuit diagram (drawn by Derek) from a Jennings Organ Company Service Data handbook of 1958. Thanks to Steve for the image. The sheet is undated.

22nd September

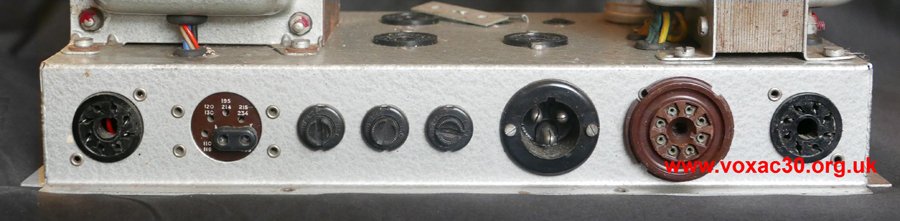

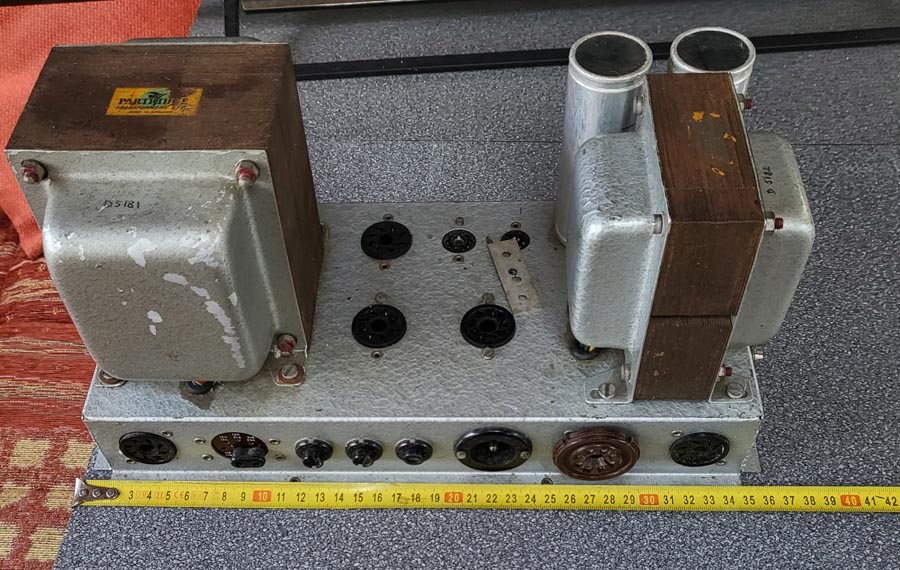

The connections edge of the Jennings Power Pack chassis, left to right: mains power out; voltage selector; HT and main fuses; mains power in; 6.3v and 12v out; regulated HT voltages and 6.3v out.

For those who like dimensions, the main chassis plinth measures 13 1/8" long x 6" wide x 2" tall. The flanges at base on three of the sides are 3/8" deep. The laminations of the mains transformer measure 5" x 4 1/4" x 2 7/8"; those of the low voltage transformer 4" x 3 7/8" x 1 3/8".

Hardware - valve sockets, octal sockets, and so on - is normally riveted onto the chassis rather than fixed by machine screws and nuts. Solder joints and fixings were checked and marked with red paint. The stamp on the underside of the chassis bears the legends "TESTED" "1" "ORECO" [not "ORGCO" as previously stated].

21st September

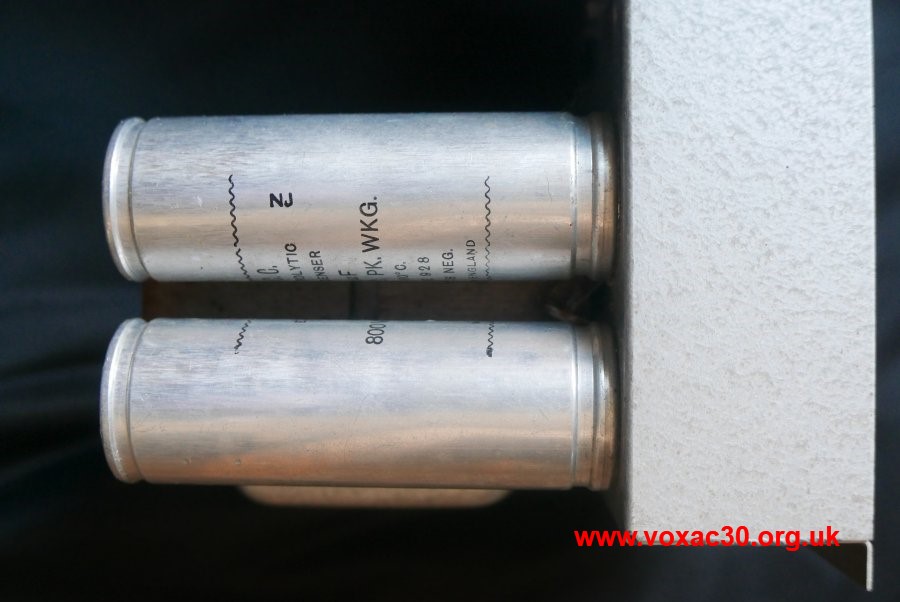

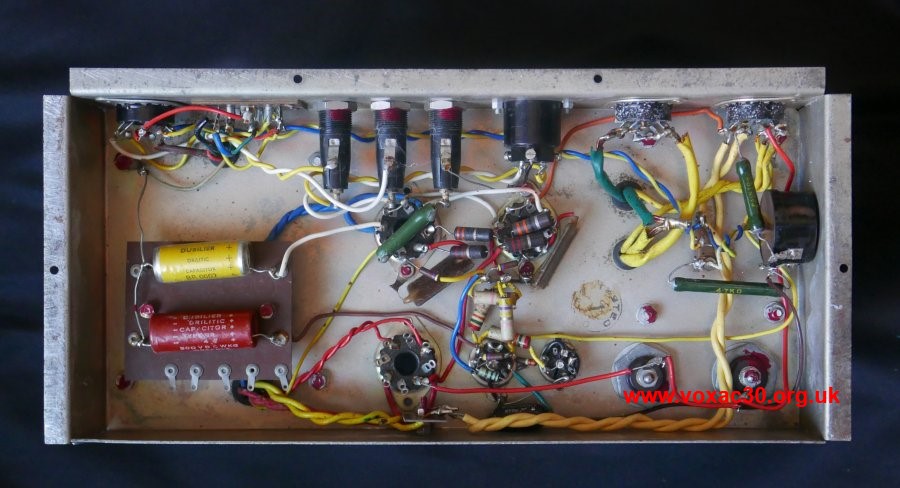

Further pics of the Jennings Organ Power Pack no. 3 that surfaced recently. The capacitors have the date code "NJ" = September 1956 for their manufacture. The two other Power Packs known to survive have Haddon transformers.

20th September

The page on a Power Pack and 50 Watt Organ Amplifier set that came to light in 2014 has been updated. More to follow.

19th September

Below, a slightly cropped shot of Derek Underdown's diagram for the "Power Pack no. 3", a surviving chassis pictured in yesterday's entry (probably from a colossal Model "G" organ). A fuller image of the sheet (showing the date of the modification noted lower left) will be posted in due course.

As has long been known, when Derek came to map the single-speaker "AC2/30" out for production, he borrowed a good deal from the organs he had designed, not only taking the circuit of the "30 Watt [Organ] Amplifier" as his starting point for its power section, but adopting the standard format of organ chassis as its basis - or rather base - too, fixed in the bottom of the cabinet.

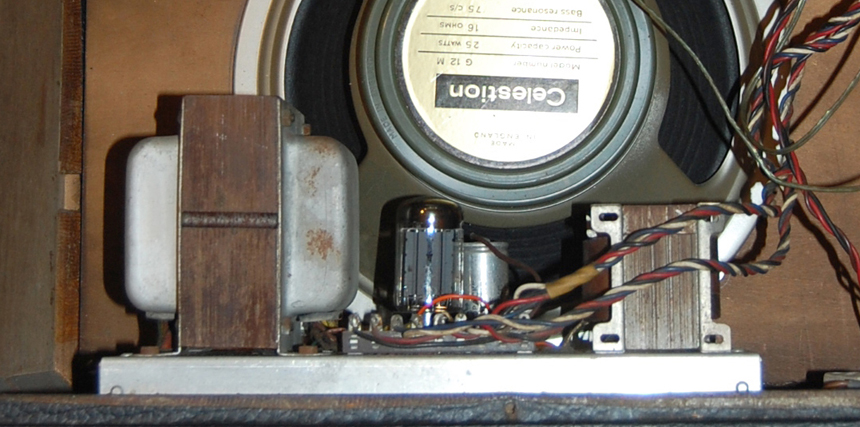

Power section of an AC/30 in the bottom of the cabinet.

18th September

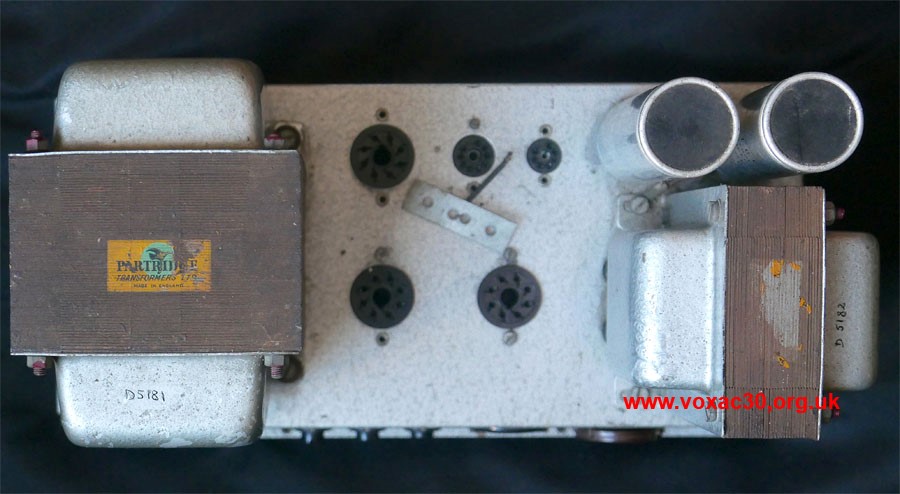

Recently surfaced, a further 50 watt "Power Pack no. 3" from a Jennings organ, this one with Partridge rather than Haddon transformers. The circuit, designed by Derek Underdown, was drawn out clean in August 1957. More to follow shortly.

The mains transformer (450-0-450v with 5A and 6.3A windings) is part number "D5181"; the smaller transformer (6.3v and 12v windings) is "D5182".

16th September

A late Jennings Univox J7, split front, mid or later 1963, serial number in the 1300s. Some general shots of serial number 1329 can be found on the page on late examples of the J6.

Production of the J7 did not run much beyond the high 1300s, later 1963, if at all.

Mullard mustard cap. with date code "A3N" = first quarter of 1963; one of the Brimar valves with "2A3" = 2nd week of '63.

Hunts cap. with date code "WAI" = 19th week of 1963 for its manufacture.

15th September

The page on the Domino Bass, linked in yesterday's entry, has been expanded with further examples and images. One of the striking things about the sequence is not so much the varying cosmetic form adopted for the model in 1965, but the complete absence - so far - of amps with serial numbers in the 4000s. We jump from the 3900s straight into the 5000s. More to come on this gap in due course.

14th September

Some notes on the 12" Fane speakers in Domino Bass speaker cabinets:

1. - three identifiably different types were used during the course of production: 122/10; 122/12; and 122/14. All were 15 ohms, 20 watts handling, the principal difference being the strength of the magnets: 10000 gauss, 12000, and 14000.

2. - Fane supplied the first batches of speakers - probably 122/10s to judge by the depth of the magnet - with frames in Jennings blue, much as Celestion T530s. This dark blue was later dropped and speakers came to JMI finished in silver/grey or light blue hammerite.

3. - the Pulsonic cone code on one of the early blue Fanes is "48/102/006". The week number "48" has not turned up so far on cones made for the Celestion blue - there is a large gap between 42H1777 and 52H1777 in early 1964. "48" would seem to fit well at some point in late December 1963 / January '64 though. The overview of Pulsonic cones in Celestion blues and silvers can be found on this page.

Detail of the speaker of Domino Bass serial number 1280. The chassis has components and valves with late 1963 date codes.

13th September

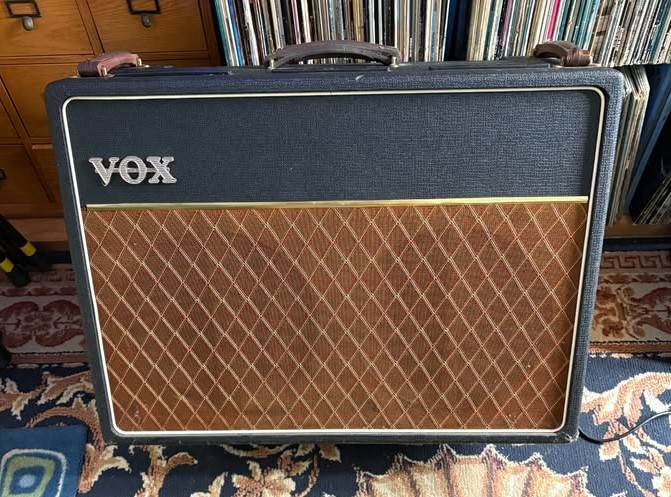

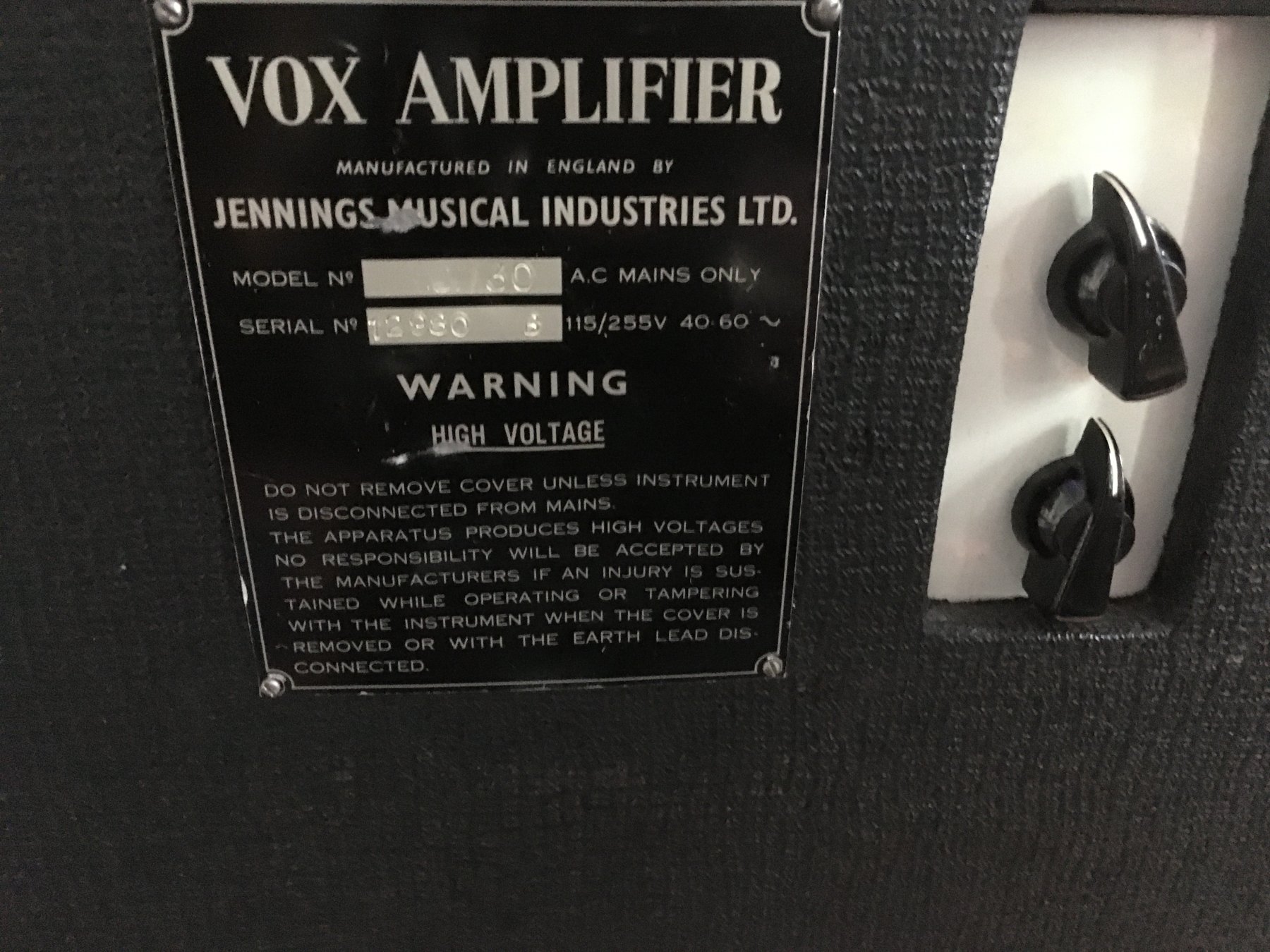

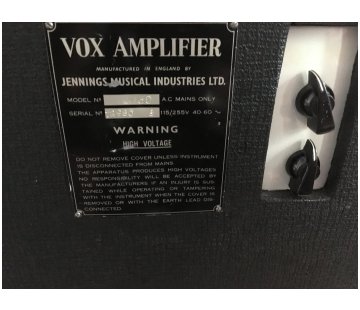

Thanks to Mark, pictures of AC30 Twin serial number 12980B. The speakers have Pulsonic cones with the code "4H1777", which indicates April or early May 1964 for their manufacture, the amp as a whole likely to have been ready for sale not too long after the speakers had been fitted, perhaps mid or late April.

Serial number 12867B has speakers dated 7th April '64, cone codes unknown at present.

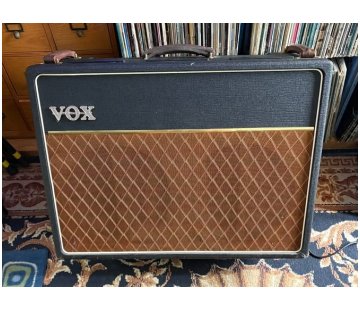

AC30 serial number 12980B. The Top Boost module is a later addition.

12th September

The list of circuit diagrams for the Riviera organs currently known to survive has been augmented with the six entries noted below. Details of GDO/012 to follow.

GDO/010 - Riviera 1 Walking Bass.

GDO/011 - Riviera 1 and 2 Vibrato.

GDO/012 - Riviera 1 and 2 drawbars and preamp, sheet begun in November 1967.

GDO/013 - Riviera 1 and 2 note generator.

GDO/014 - Riviera 2 100W transistor amp.

GDO/016 - Riviera 1 50W transistor amp.

11th September

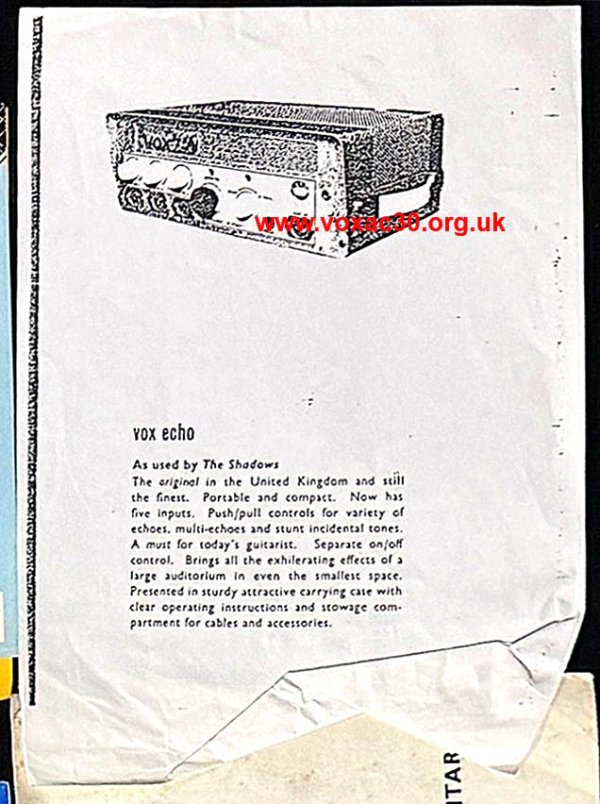

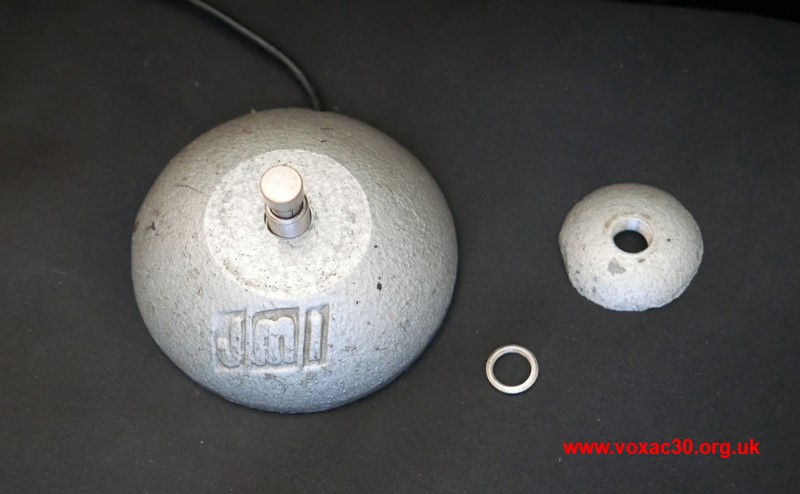

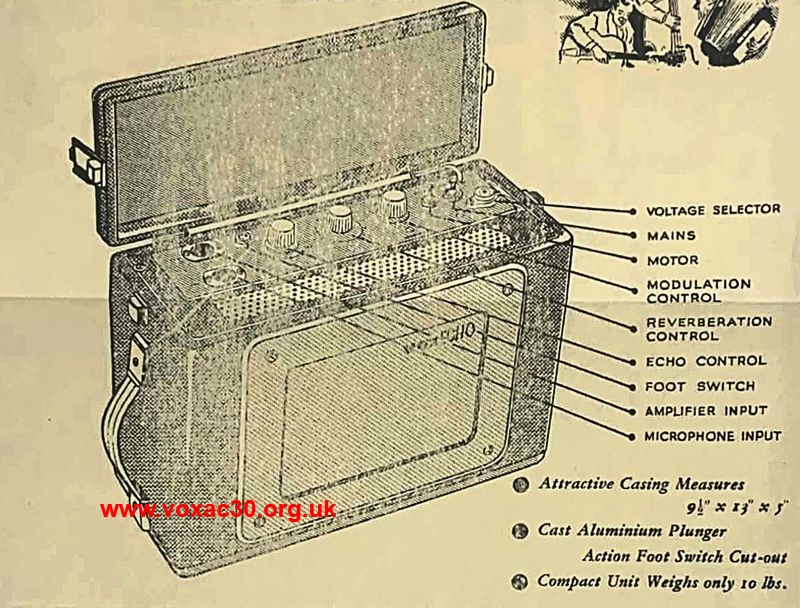

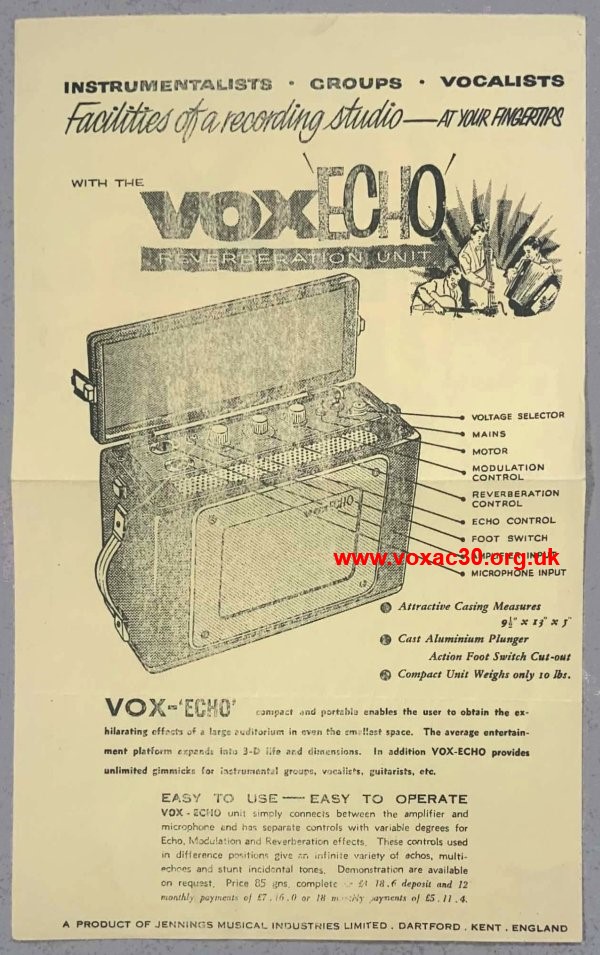

Recently at auction (part of a larger lot), a sheet photocopied from some JMI original, possibly the v. scarce catalogue of late 1962: the Vox Echo. The picture is an old one, out of kilter with the description, which gives the number of inputs as five - "Now has five inputs". The unit actually being offered is likely to have been a Meazzi PA304 - the "Stereo-Echomatic". The surviving Jennings circuit diagram for the Stereo Echomatic - OOS/034 - was for an earlier version though with three inputs.

10th September

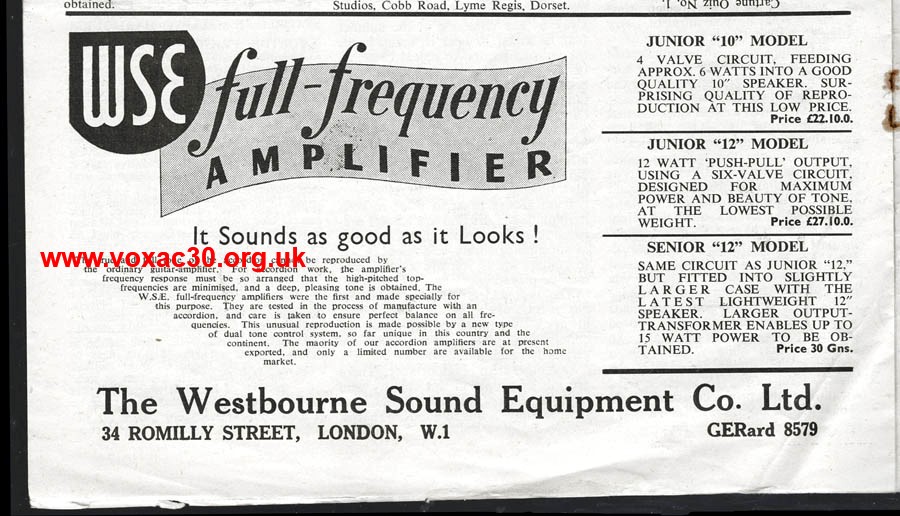

June 1949, an advert from Tom's house magazine (sent out from 119 Dartford Road). As mentioned yesterday, W.S.E. accordion mics were certainly available direct from Jennings at least as far back as Spring 1948. Although it seems likely, on balance, that the majority of those requiring amplifiers in early days would be referred to Romilly Street, the possibility that Tom stocked a small number of units from time to time cannot be entirely ruled out.

June 1949.

9th September

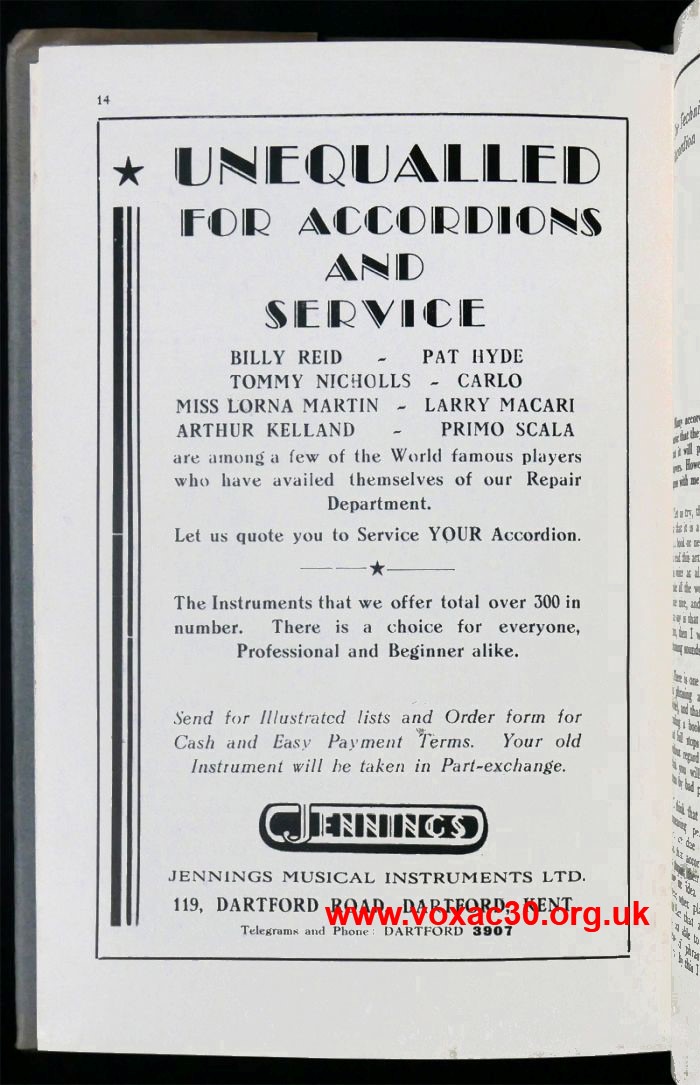

Spring 1949, Tom's stock totalling over 300 items. His premises at this time were 119 Dartford Road, where he lived, and the shed at back. 100 Charing Cross Road, and numbers 115 and 117 Dartford Road came later.

Accordions and accessories, harmonicas, and smaller instruments probably accounted for the bulk of his stock. Among the accessories, certainly the W.S.E. accordion microphone (advertised in spring 1948), and perhaps the W.S.E. "Junior Twelve" amplifier, listed in an advert, summer 1950. Whether he had guitars in spring 1949 is unknown at present. The first mention (and illustration) comes in the autumn of 1950.

Spring 1949.

8th September

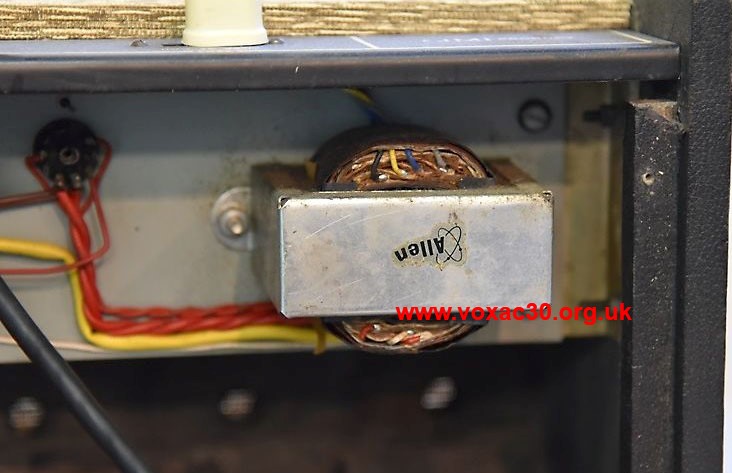

A couple of details of a late Domino Bass chassis assembled for JMI at some point in 1965 (probably mid) by Triumph Electronics in Purley: output transformer stamped "5200 15" (15 ohms), mains transformer made by Allen.

Allen transformers were also used later by Burndept for the JMI solid state "Traveller" amplifier.

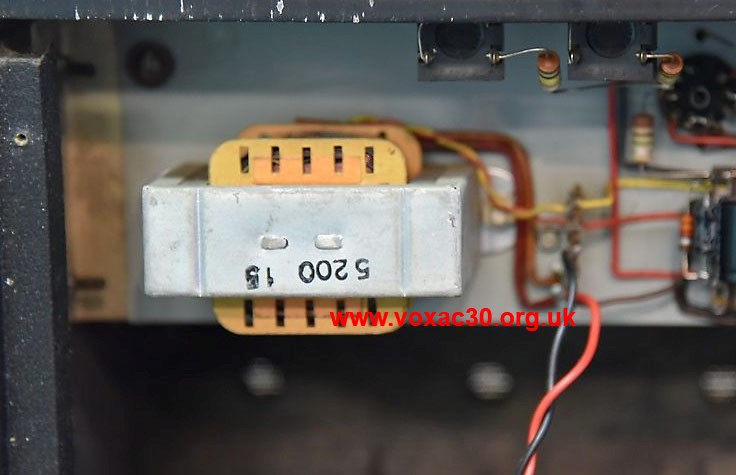

Output transformers marked "5200" (made by Richard Allan) are standard in AC4s, which the Domino Bass effectively was in terms of electronics.

Just to say that the cabinet of this Domino Bass now bears the serial number plate of a Domino Reverb along with a note on yellow dymo tape to the effect that the amp had been consigned to Denis Peyton of the Dave Clark Five by JMI. Honestly, as if. The man (initials JH) who added the tape and probably the plate too evidently had some sort of abiding obsession with Peyton. Why is anyone's guess. If you see a guitar or amp purporting to have some connection with Peyton you can be sure that JH has been at work.

The Domino Bass chassis pictured below is perfectly ok though (ie no fiddle-dee-dee).

7th September

Pictured rehearsing in mid or later 1964, "The Black Sheep" with a Bird "Golden Eagle" amplifier (not a 30 Reverb as stated yesterday). Its cabinet was evidently divided into two main sections, a compartment for the reverb spring at foot and a larger compartment for the amplifier chassis and speaker. A further smaller compartment was provided for the mains cable.

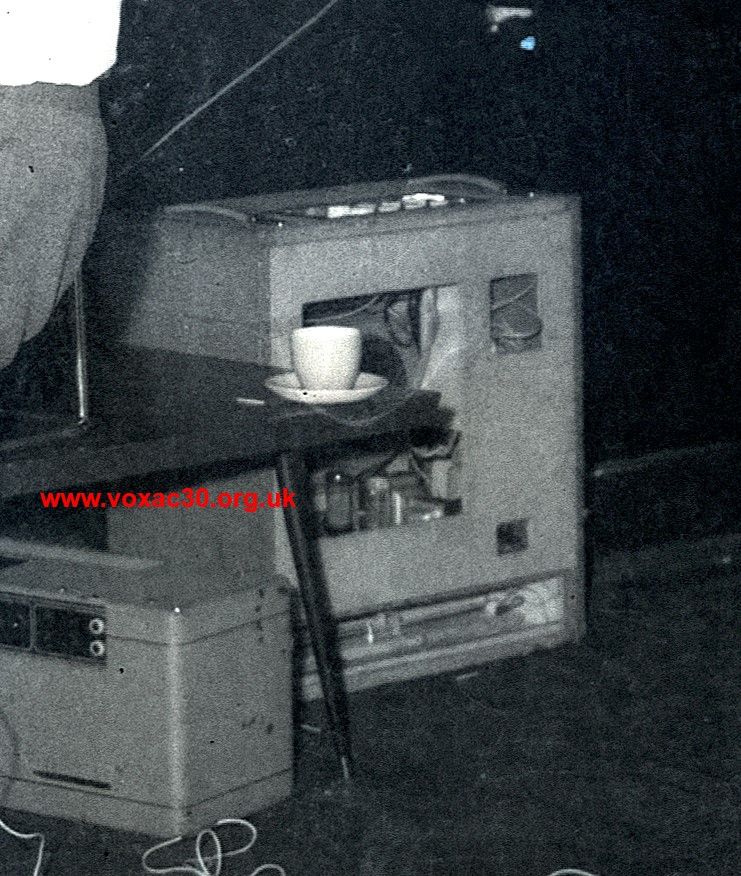

One of the band's Super Twin amplifier sections front down, and the Bird "Golden Eagle".

"Vintage Guitar Magazine" has some useful photos of a surviving "Golden Eagle".

6th September

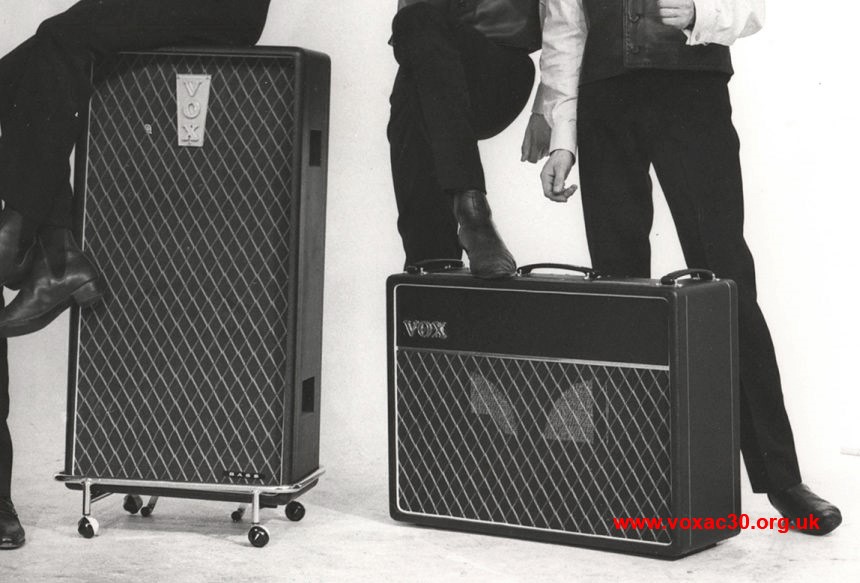

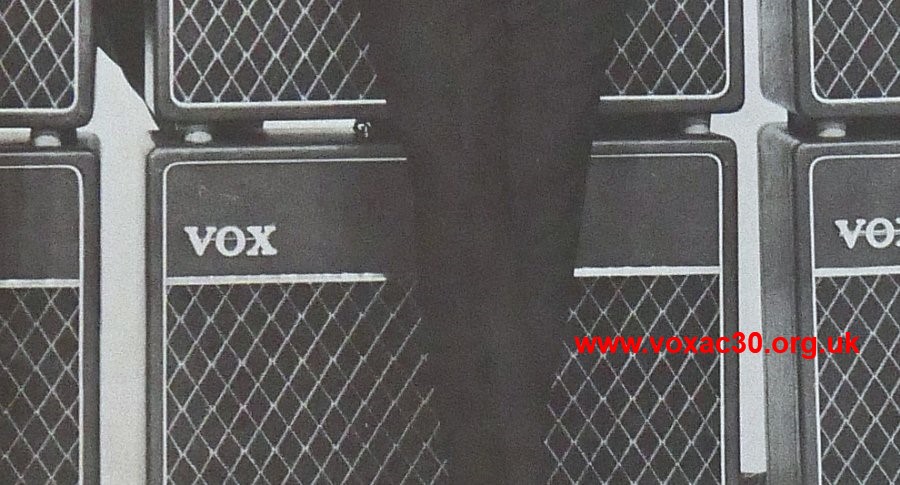

Below, details of a first generation chrome AC30 stand from a set of negatives of the band "The Black Sheep" rehearsing in a church hall mid to late 1964. The band (two guitarists, a bassist, drummer and keyboard player) are pictured with: two beige AC30 Super Twins; an early chrome stand; an AC30 Twin in black; a reed organ; Vox Continental with sloping top; a Fenton Weill Auditorum 30; a Selmer Bassmaster and Goliath cabinet; a Bird 30 Reverb amplifier; Vortexion PA amplifier to drive a pair of Vox LS40 speakers; Reslo stands and mics; and a fairly rudimentary drum kit. Whether all these things were theirs is unknown.

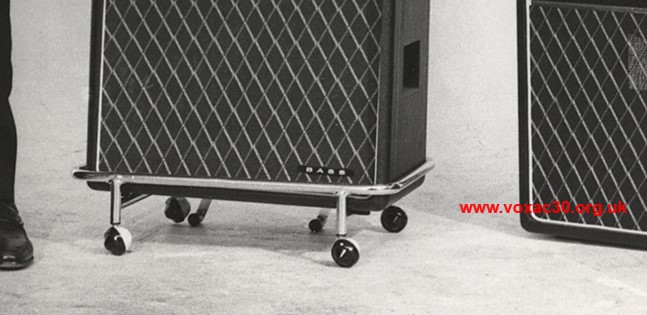

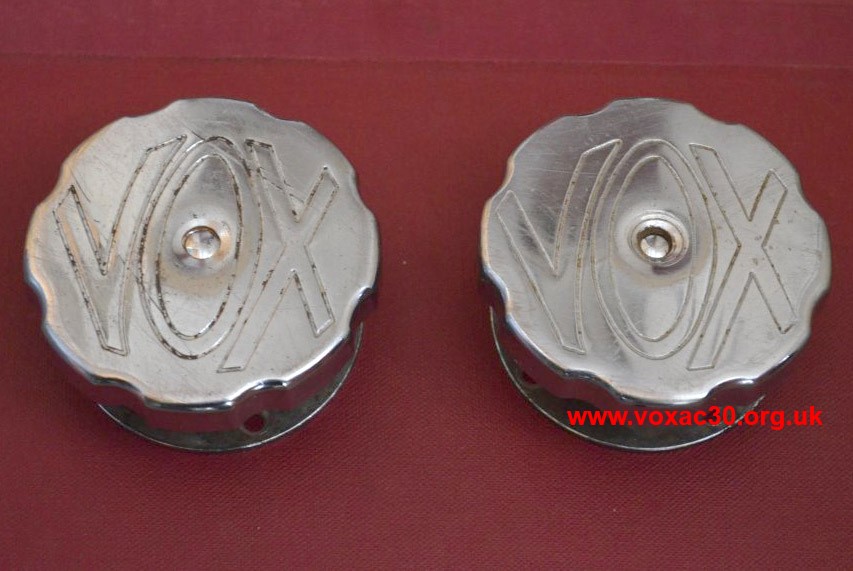

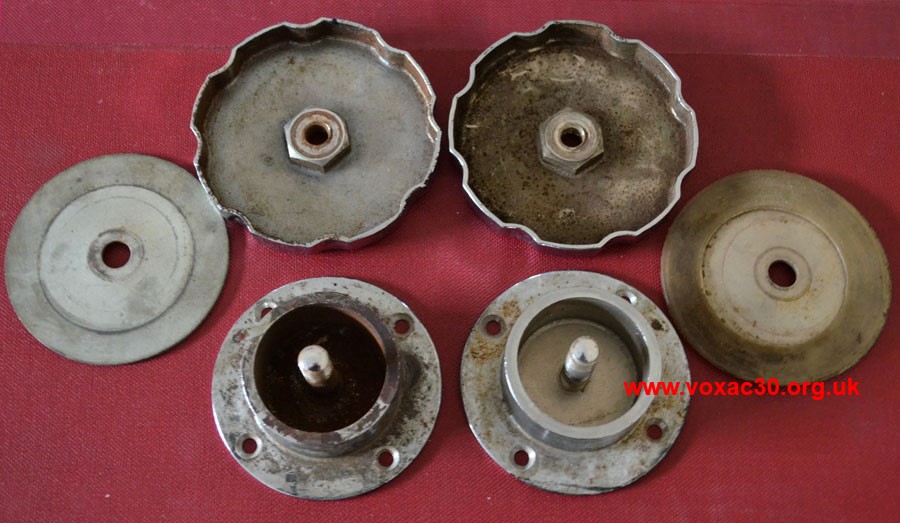

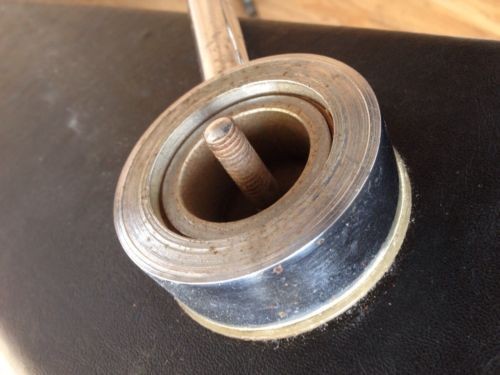

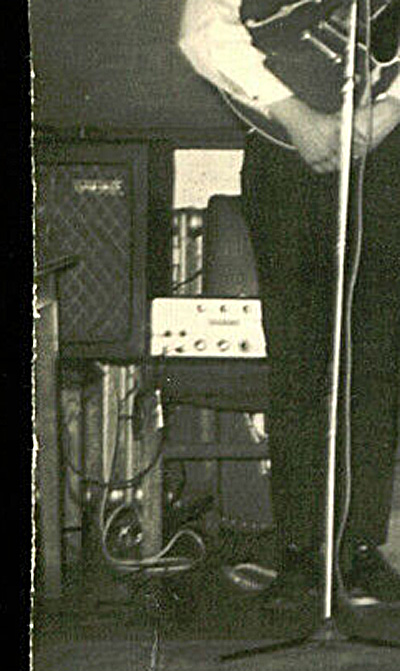

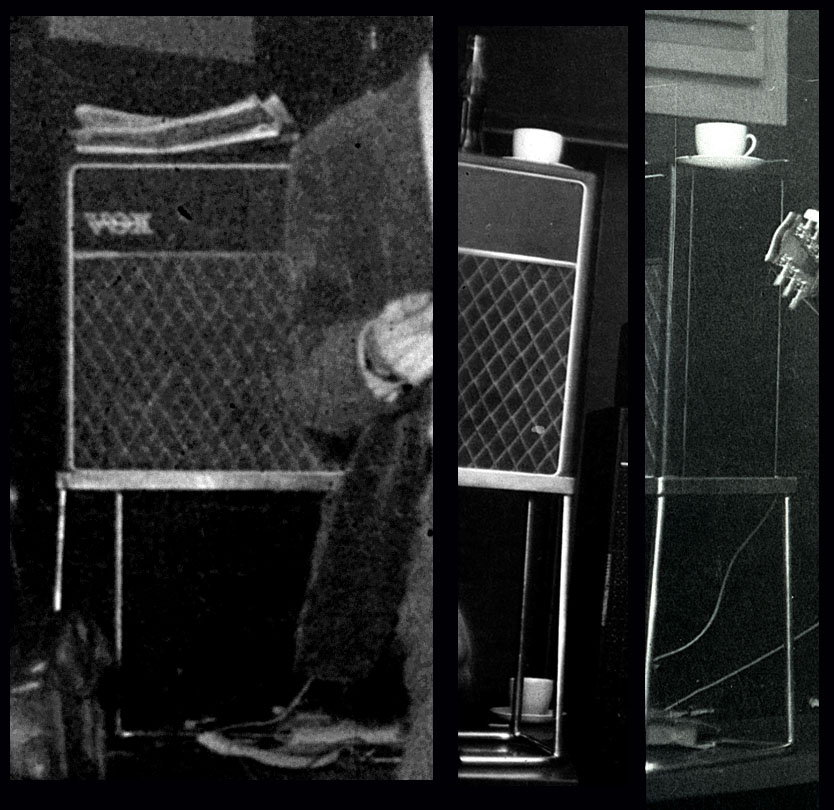

Details of the early AC30 stand belonging to "The Black Sheep", mid to later 1964.

5th September

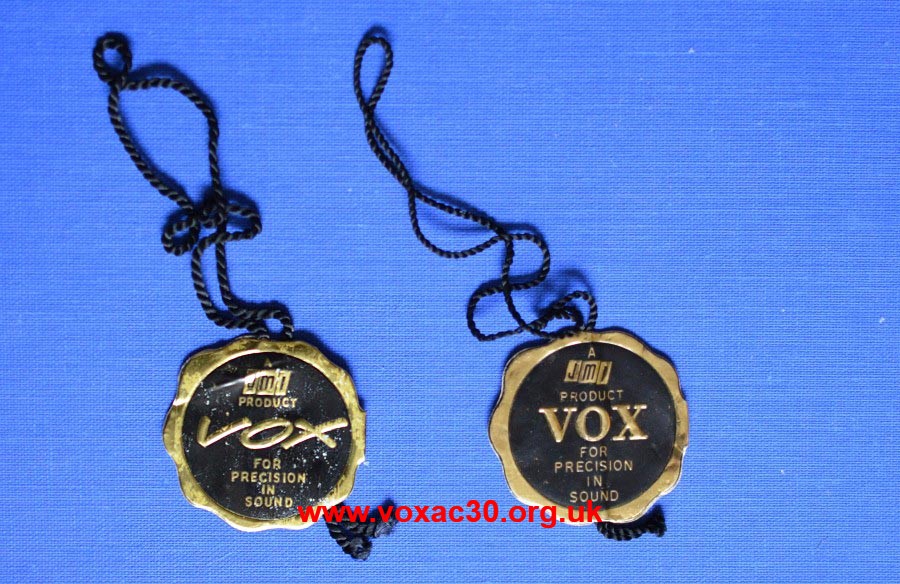

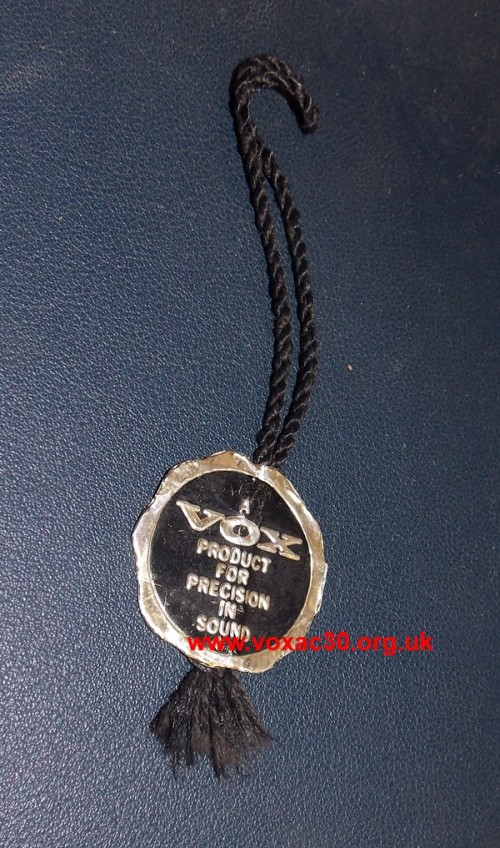

Three types of JMI hang tag. These were normally tied to guitars, accessories, and amplifiers before packing. The two in the first picture are most common: "VOX" in cursive into 1964; "VOX" in block capitals from late 1964 through to 1968.

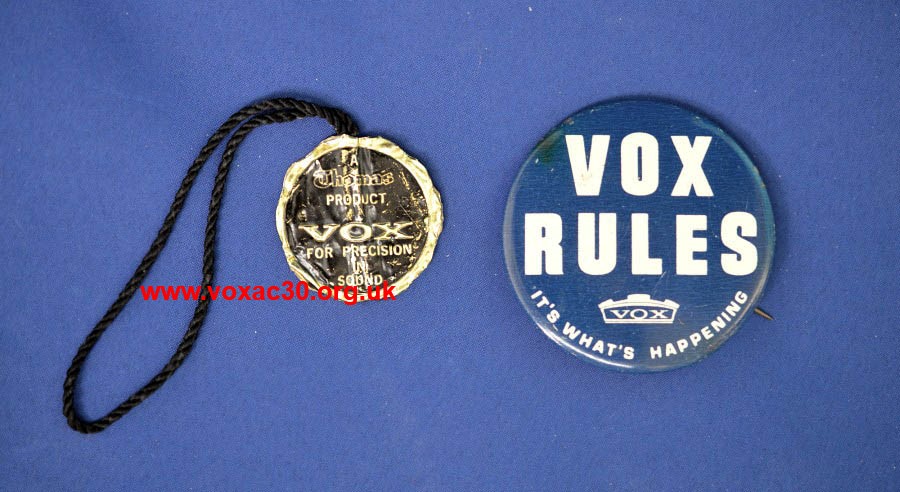

The example on its own in the second picture is scarcer, encountered so far only on one JMI amp from 1966, and may have been devised principally for exports to the USA. The form of "VOX" is the same as that on the tag devised by Thomas (third picture, below).

Thanks to Heinz for the picture.

4th September

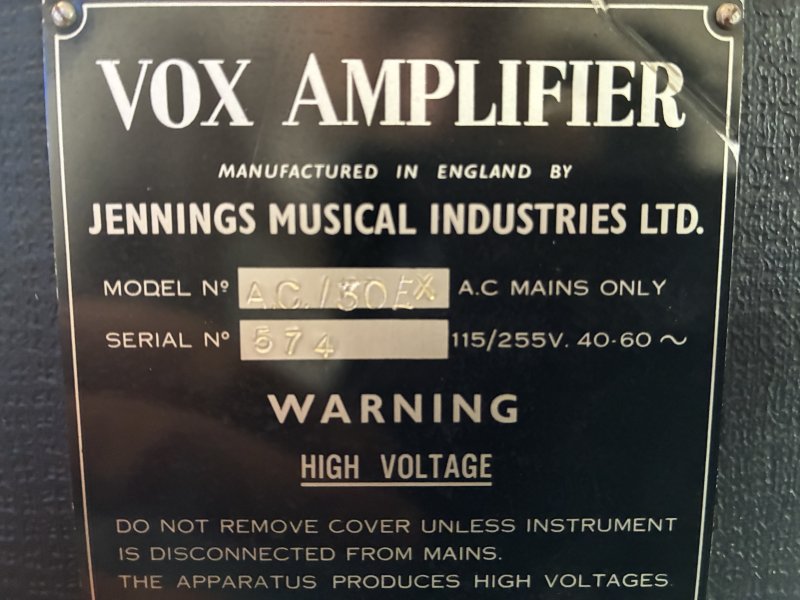

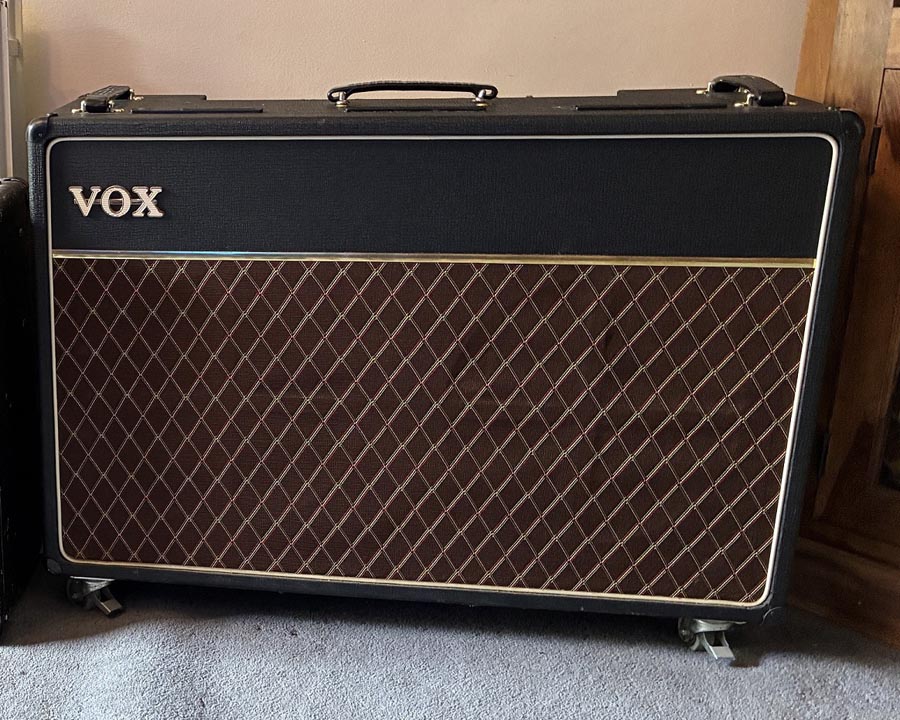

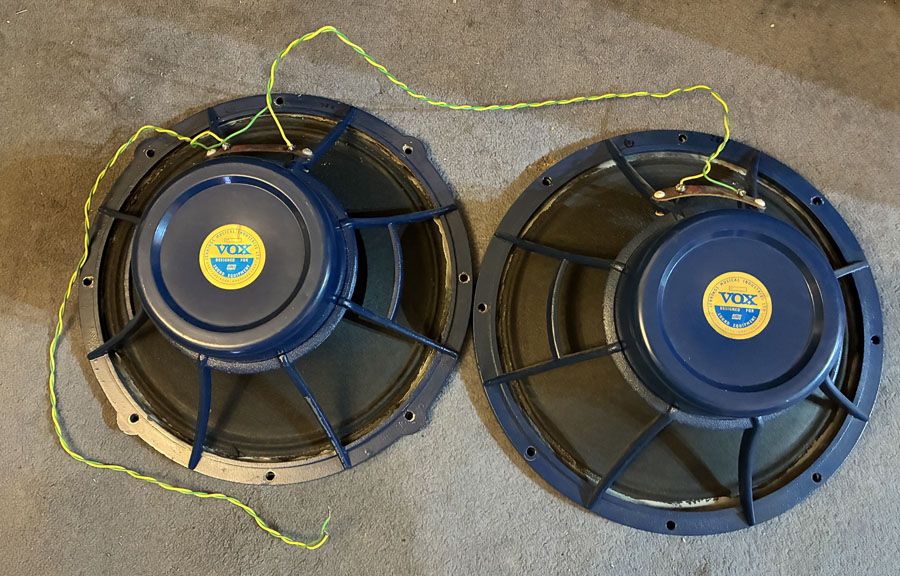

The speakers of AC30X serial number 574, on the left a Celestion T900 from January/February 1964, on the right a T1074 from mid '64. The two are wired in series. As the T900 is normally 4 ohms and the T1074 15 ohms, a total series impedance of 19/20 ohms is in view. The speakers were connected into the 8 ohm tap on the terminal block. Was the T1074 mis-stamped, being in actual fact a 4 ohm T900? If not, power will not only have been unevenly distributed between the two, but the output of the amplifier seriously curtailed by the load on the output transformer.

3rd September

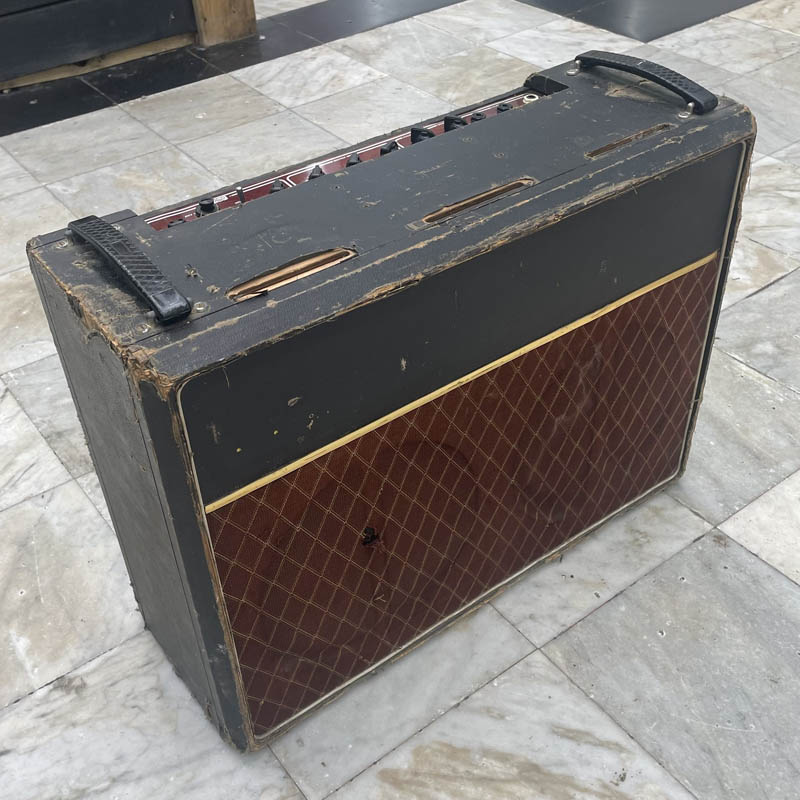

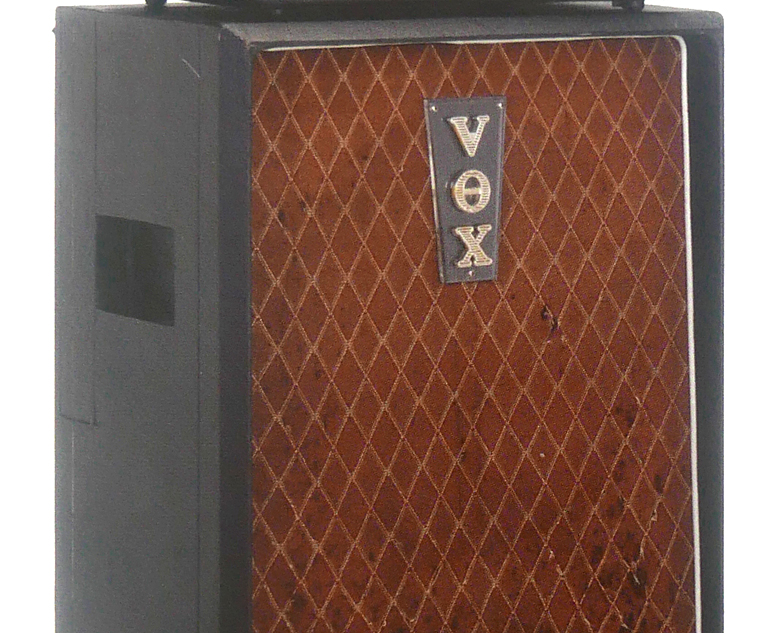

Seen doing the rounds a little while ago, AC30 serial number 7188, its cabinet with sloping edges similar to those on the T60 cabinet mocked up by Mick Bennett, JMI's principal wood craftsman, in 1963.

It certainly seems possible that the AC30 cab was Mick's work, perhaps a trial piece that found its way - for whatever reason - into the production run. The sloping edges, decorative as they are, can hardly have been thought viable either in terms of cost of manufacture or longevity of use though.
