Jennings Organ Company "Model C", serial number 34
1956

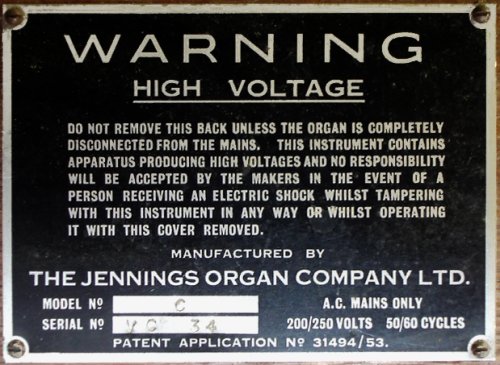

"V" stands for "V-series" (which superceded the older "B-series"), the second "C" probably a second designation of the model.
Thanks to Steve, pictures of a Jennings "Model C" organ from 1956 - serial number 34, for many years (possibly from new) in the West Country. Below, general views of the exterior, and sets of pictures of the amplifier and power supply sections.
Component date codes are noted in the captions. Both of the main assemblies bear the same inspection stamp:

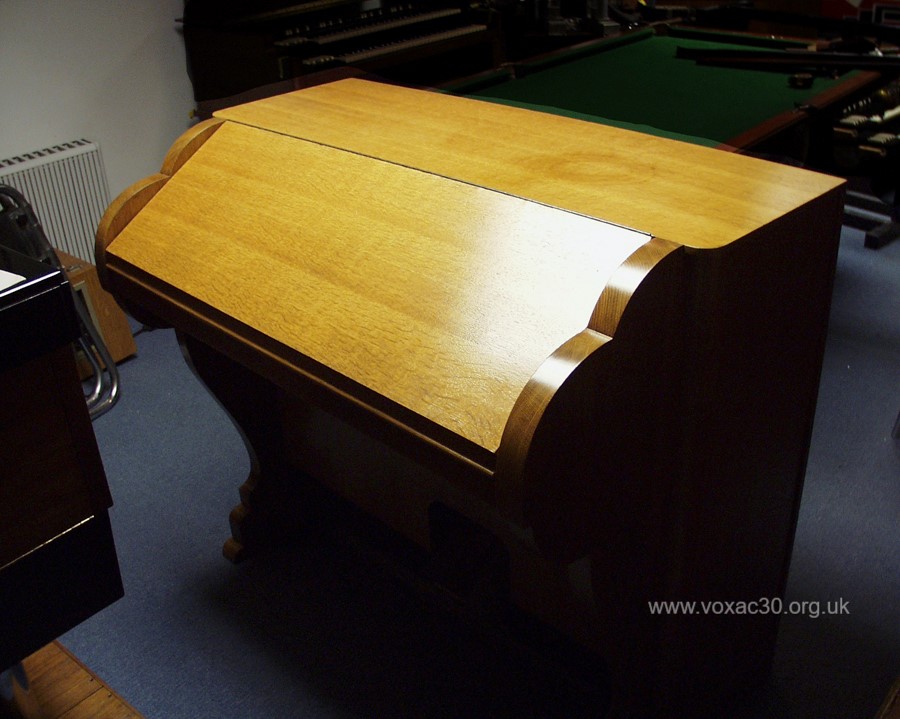

General views
Amplifier section
TCC capacitors, 8uf 800v, have the date code "NA" = January 1956.
The yellow Dubilier capacitor has the date code "LM" = December 1954. One of the blue Hunts caps, possibly a replacement in company with the other Hunts caps, has "TTU" which is the 44th week of a year ending in "6".
Power supply
TCC capacitors, 8uf 800v, have the date code "NA" = January 1956.
Yellow Dubilier capacitor with the date code "MM" = December 1955.
Electronics - note generation

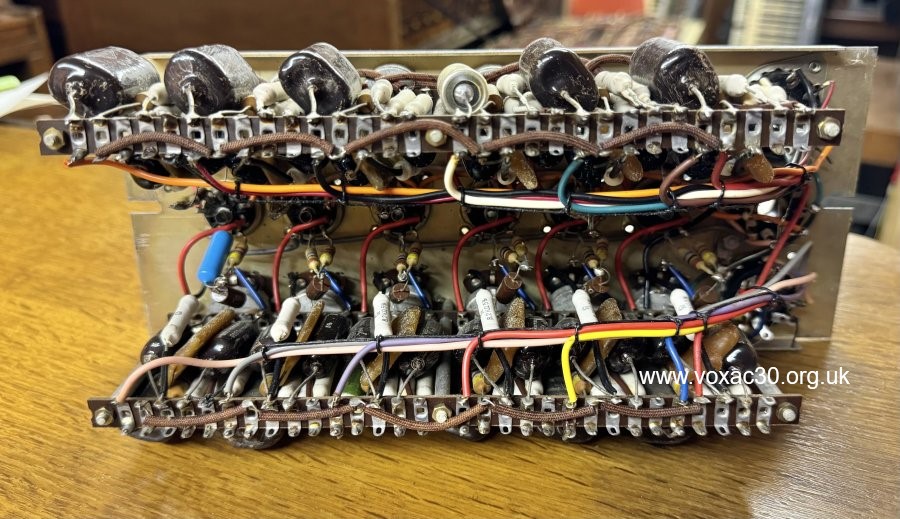

First picture: the main tray containing the note generator assemblies for the seven octaves of the keyboard, and the vibrato module. Below, details of one of the oscillator/generator assemblies (producing the 12 notes for the octave in view) - wired up by Jean, one of the members of the organ department in 1956.
