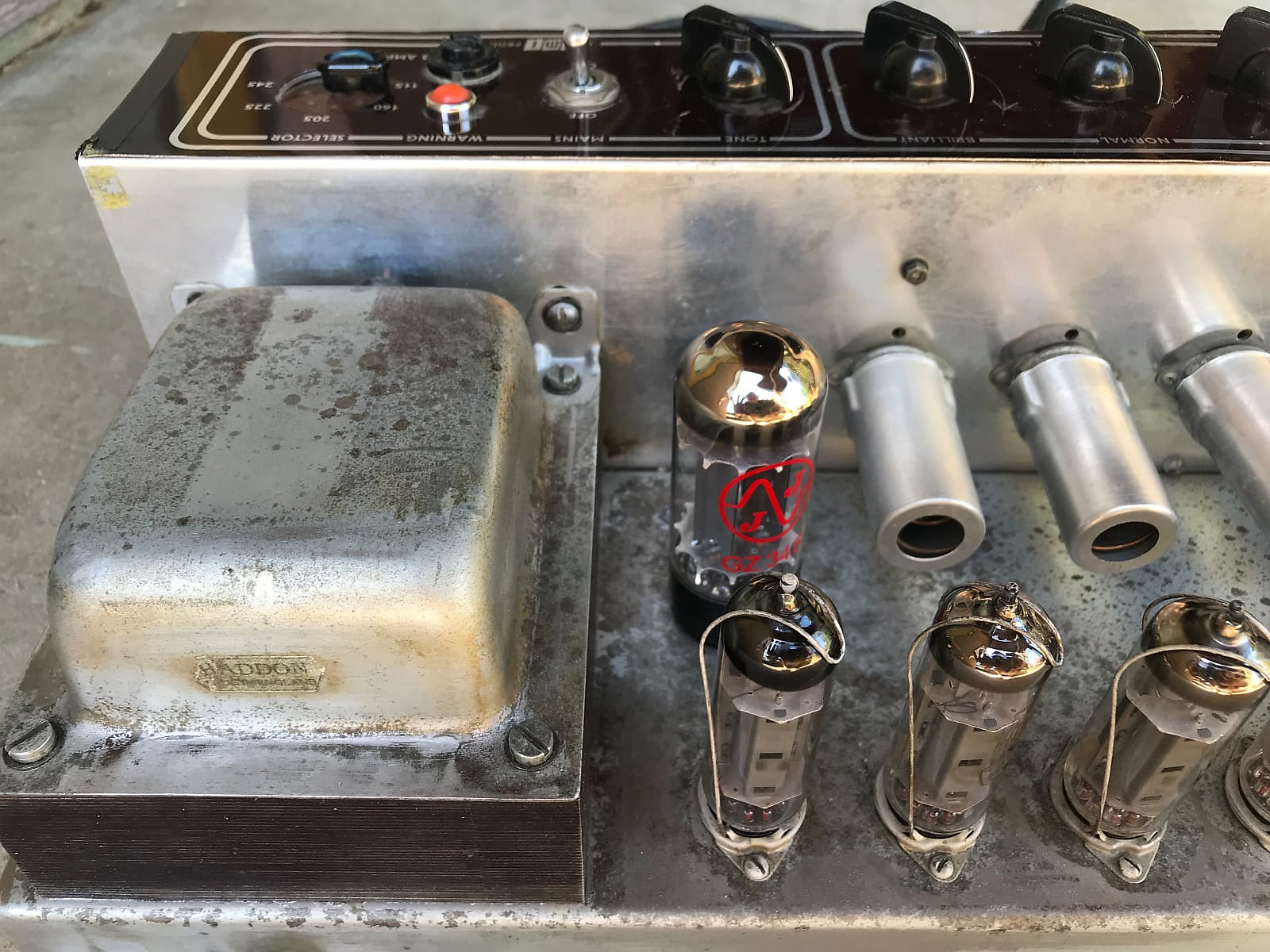

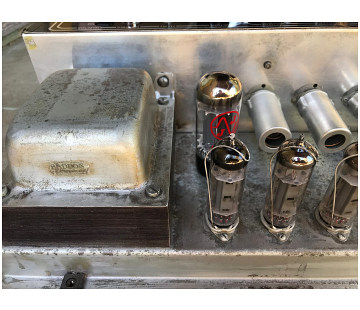

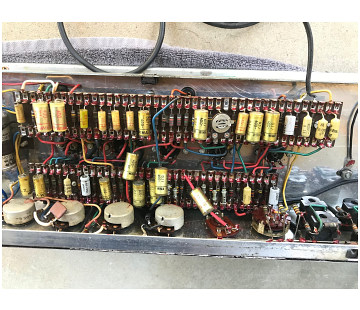

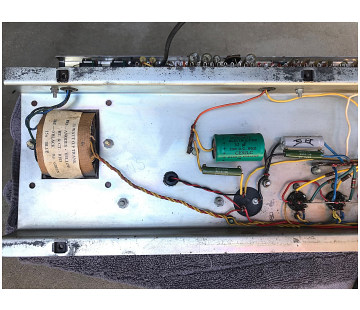

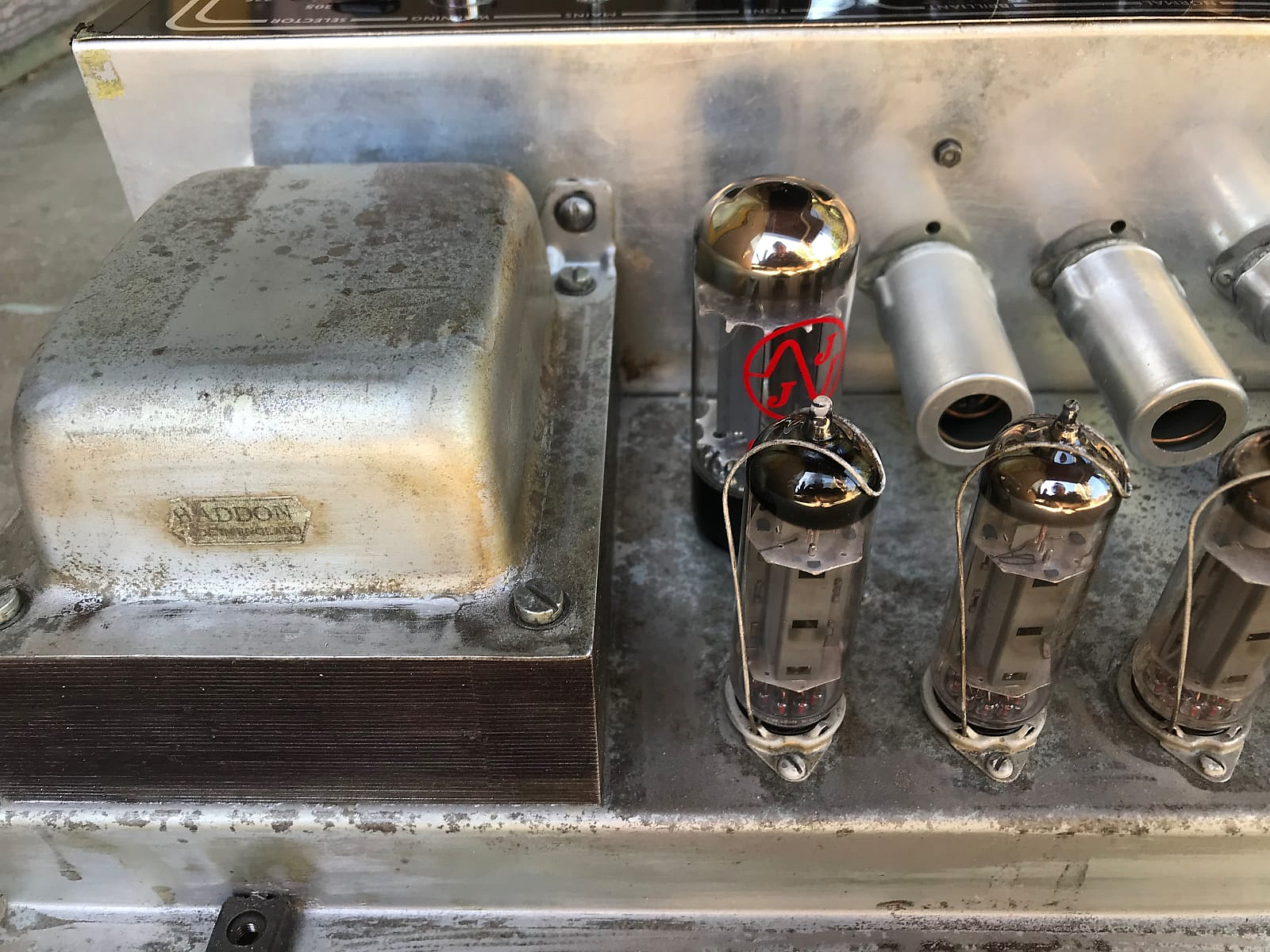

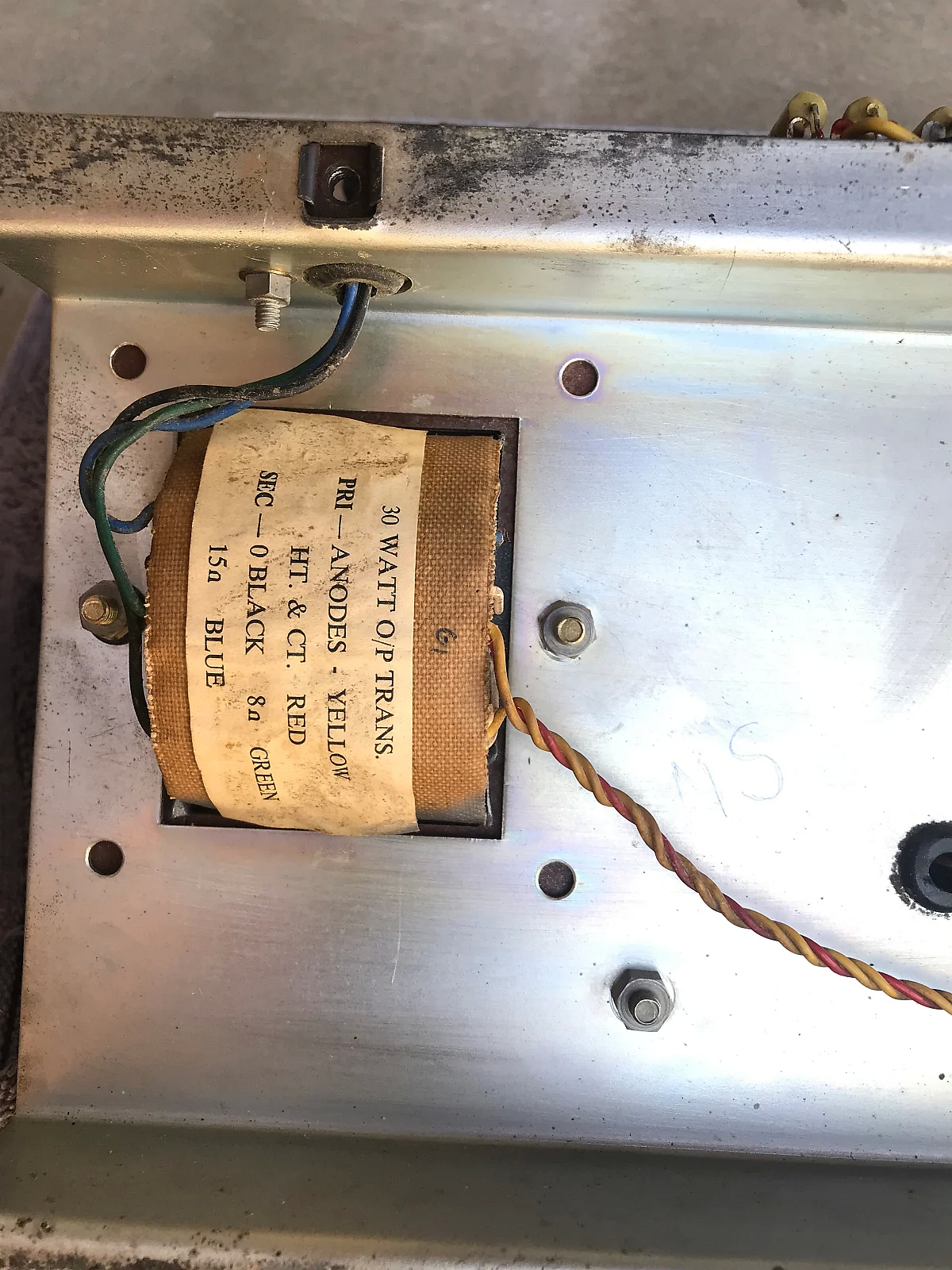

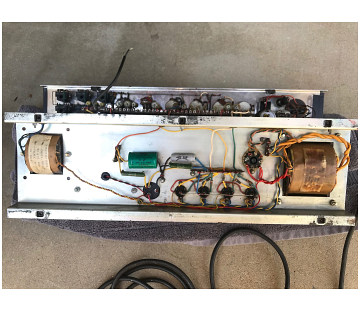

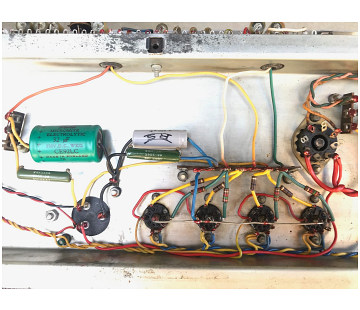

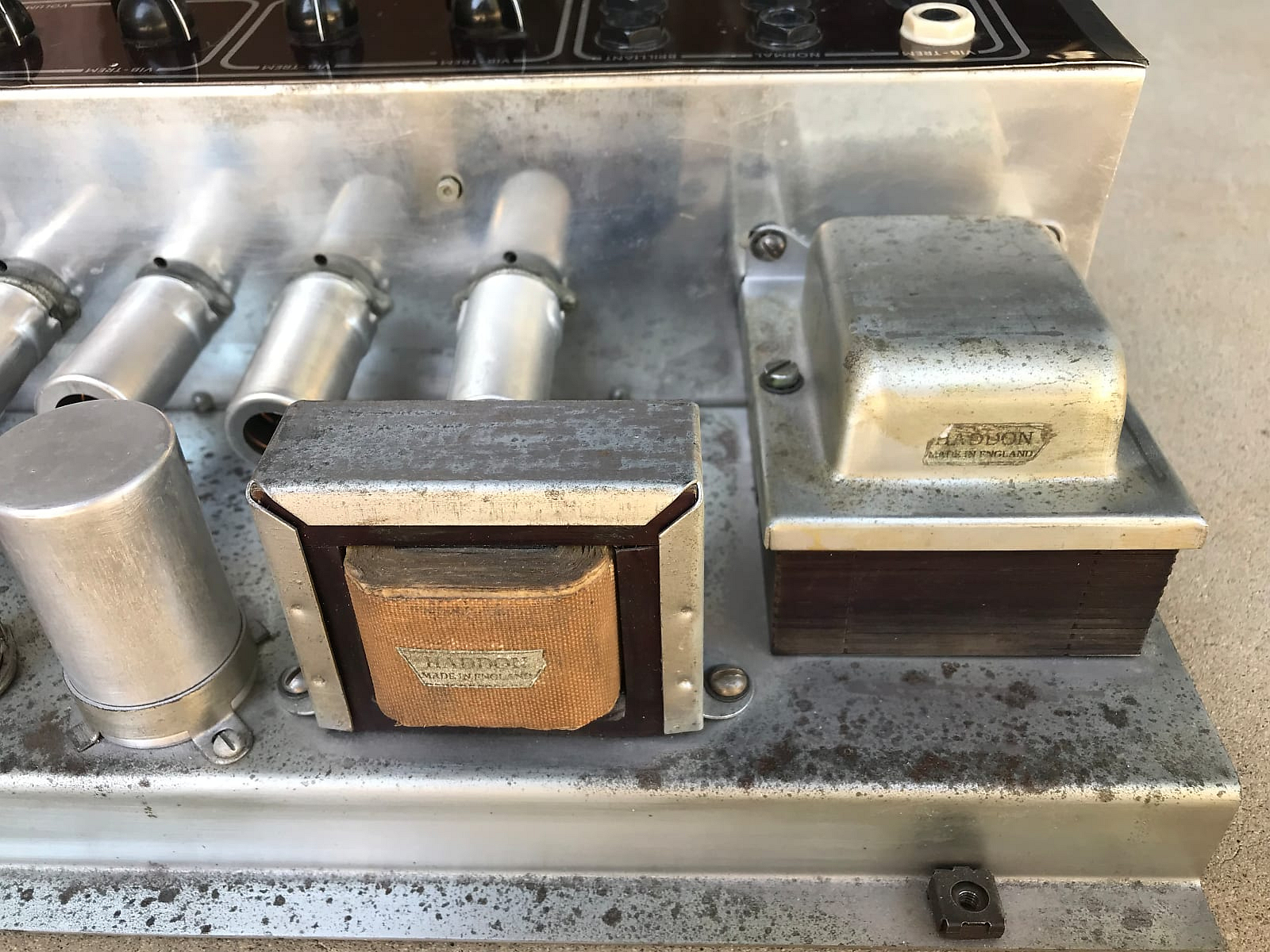

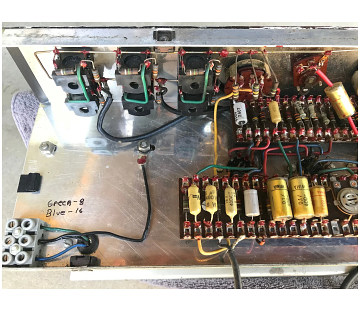

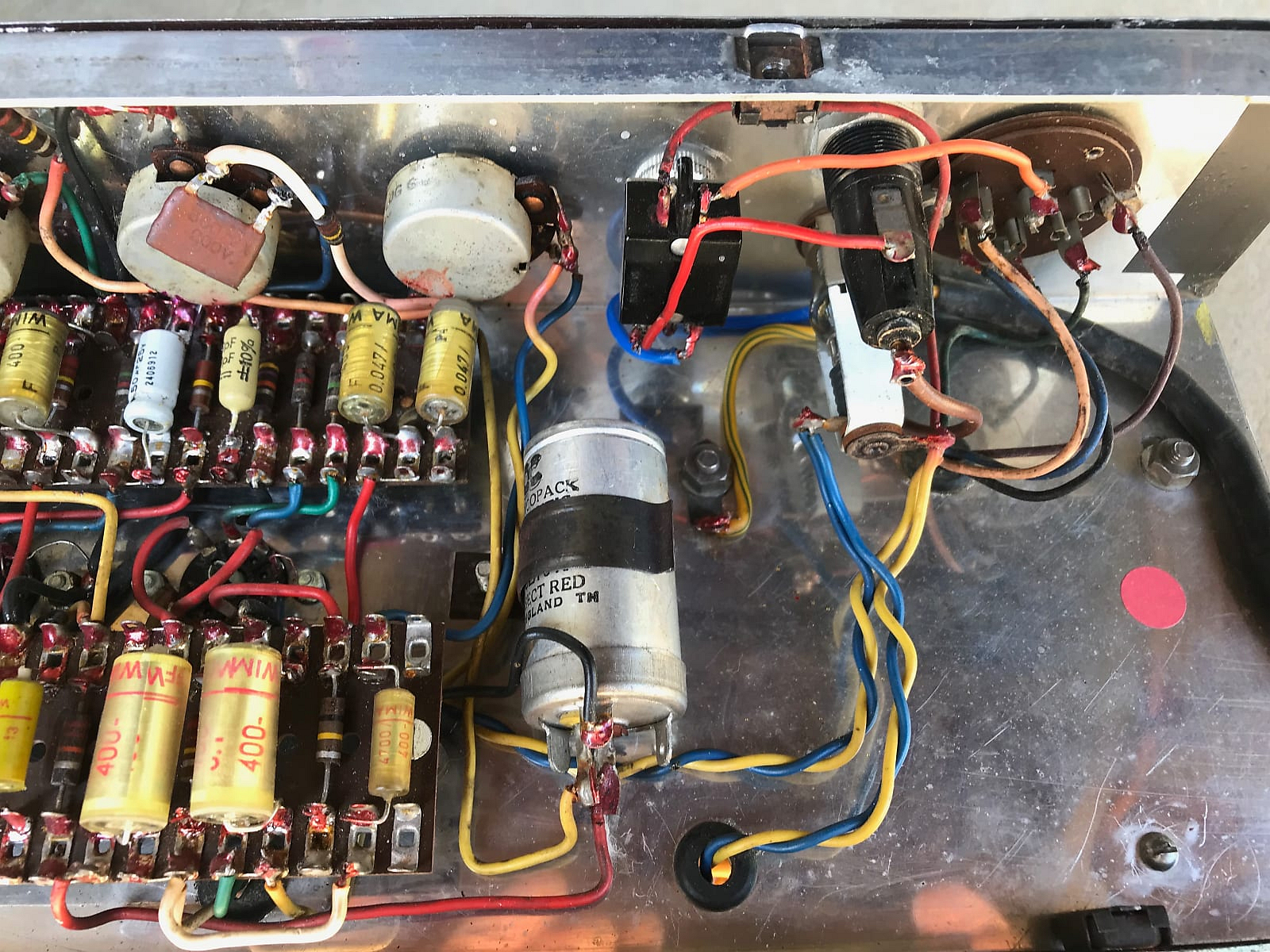

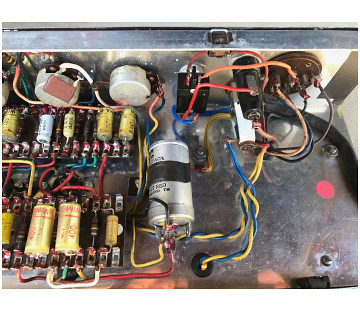

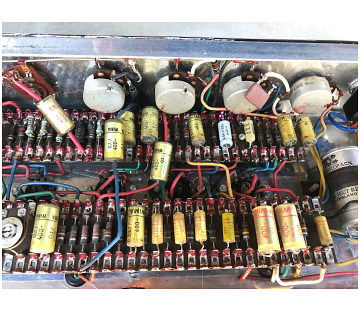

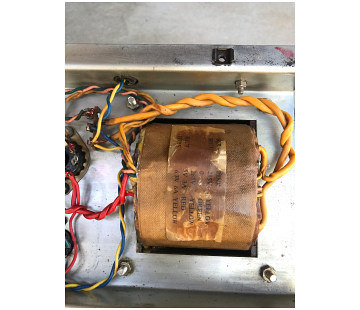

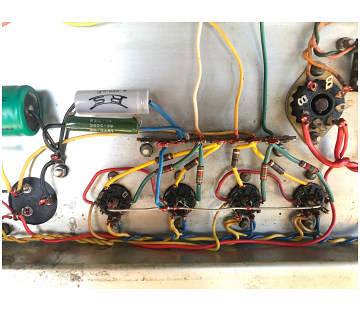

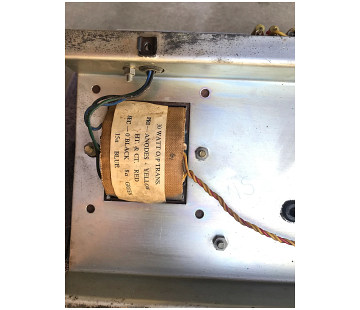

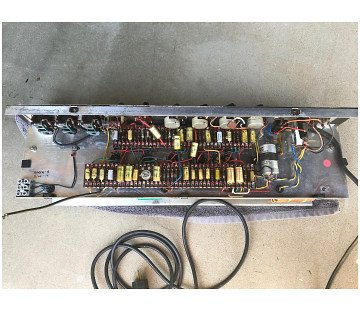

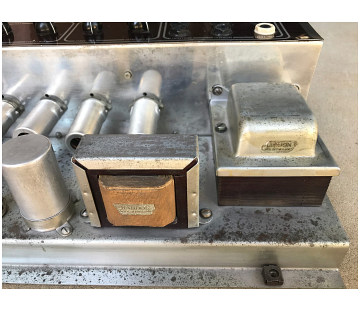

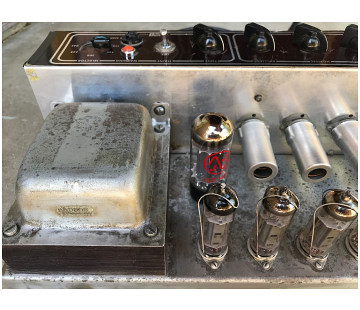

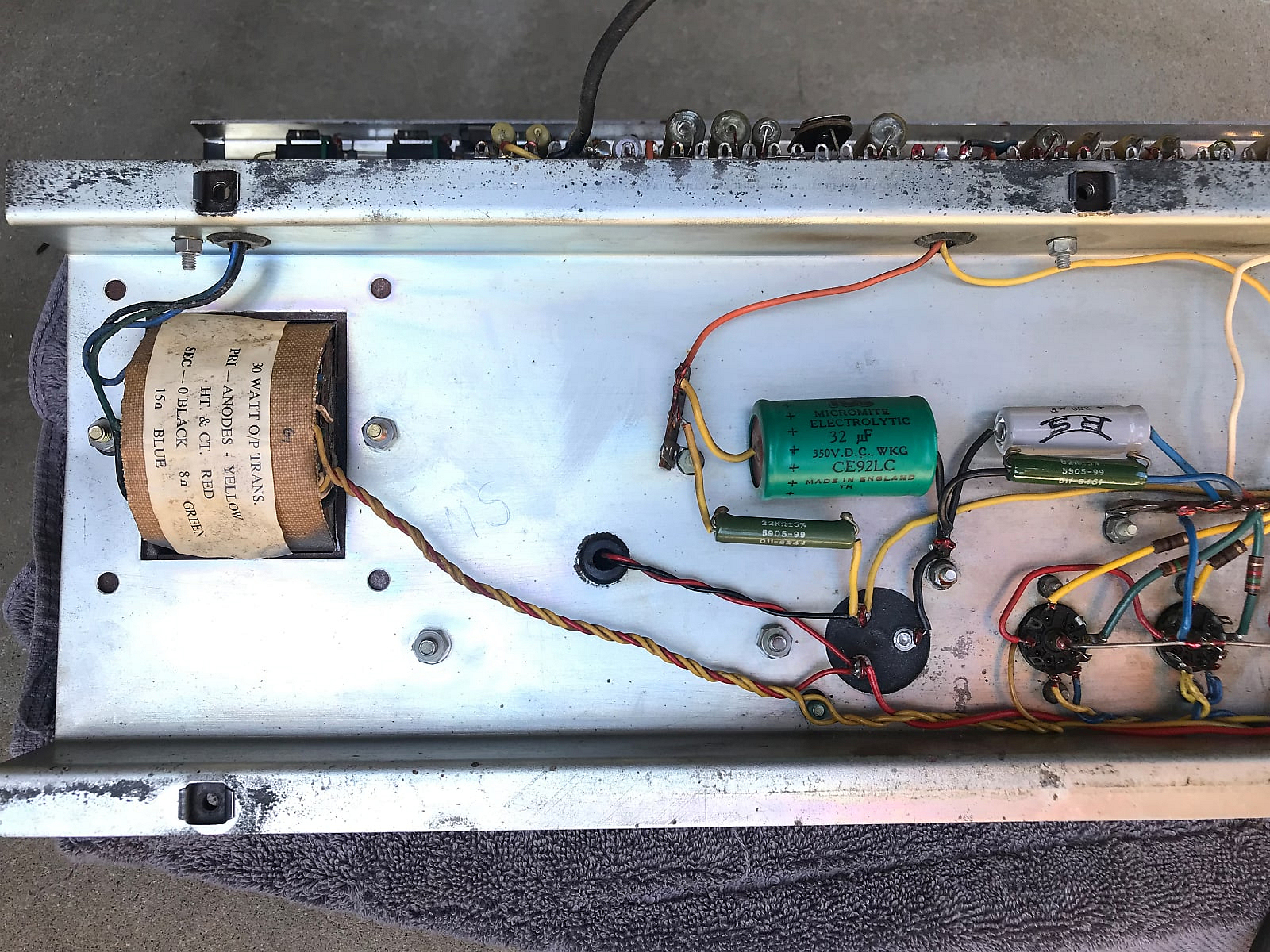

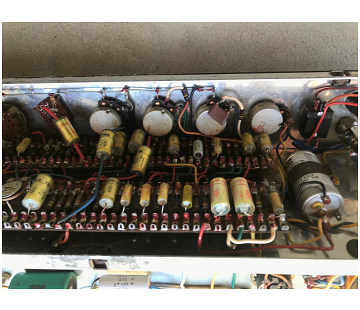

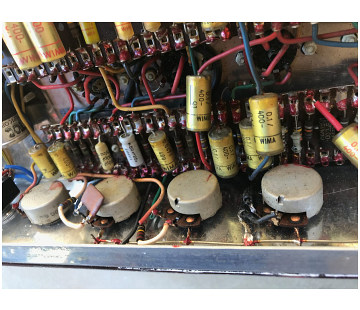

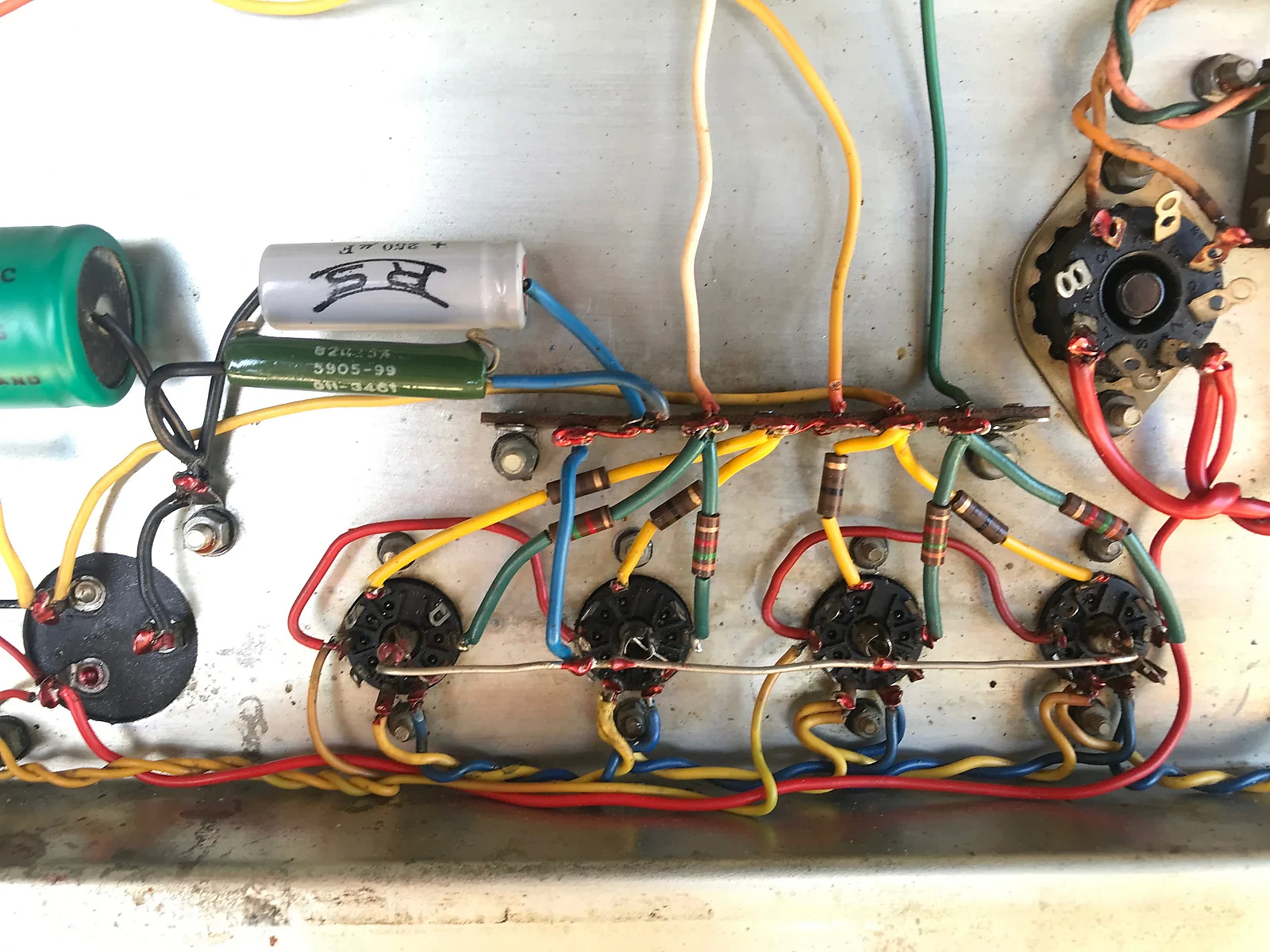

Pictures and notes on a Vox AC30 chassis assembled for JMI by Westrex in late 1962. Transformers are Haddons, the choke too. The cathode resistor is 82R (i.e. predating the change of mid 1963); the main TCC capacitors have the date code "TH" = August 1962. The date codes on the pots are unreadable unfortunately. Signal capacitors are gold-coloured WIMA Tropyfoil (Tropyfol), some replaced by Mullard mustards (one with a 1968 date code).
