For general views of the amp, and a short introduction, see this page.

More information on AC30/4s with serial numbers in the 4000s can be found here.

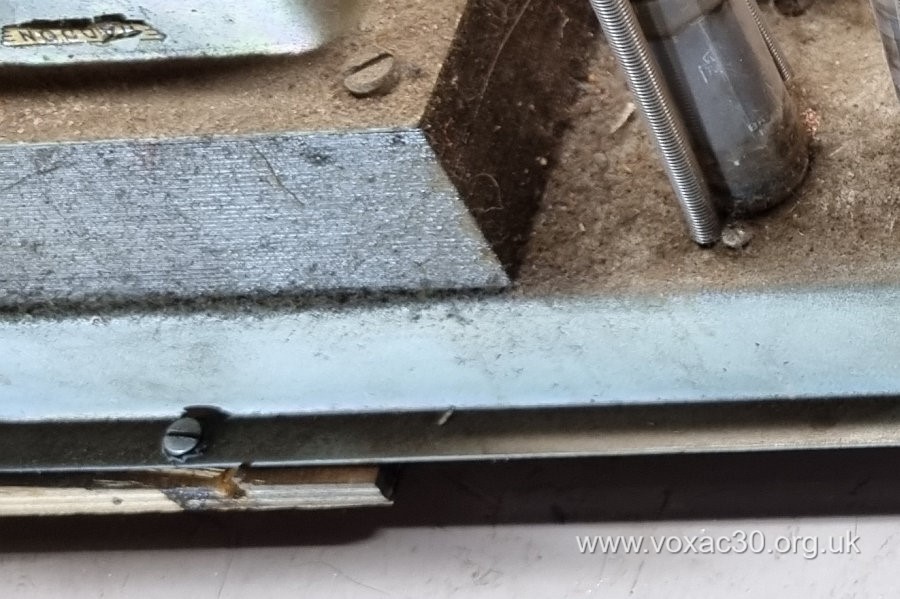

Simple holes in the chassis for screws fixing to the slider board - no cage nuts.

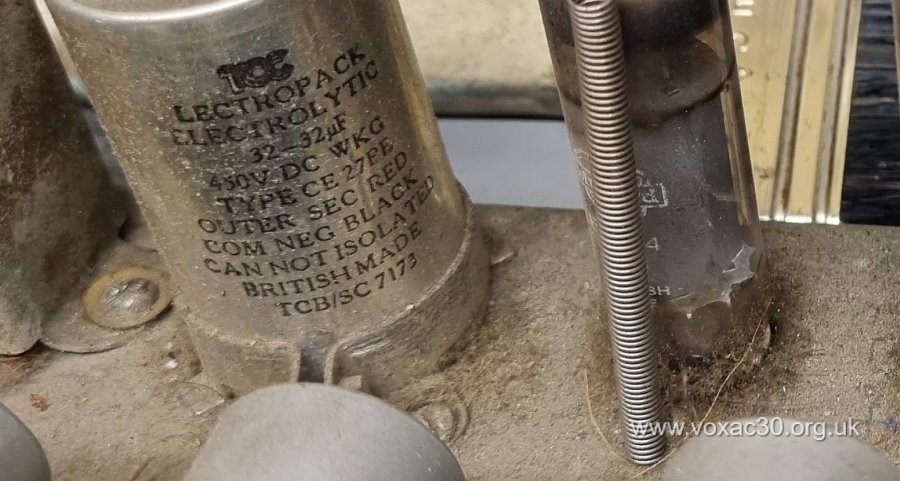

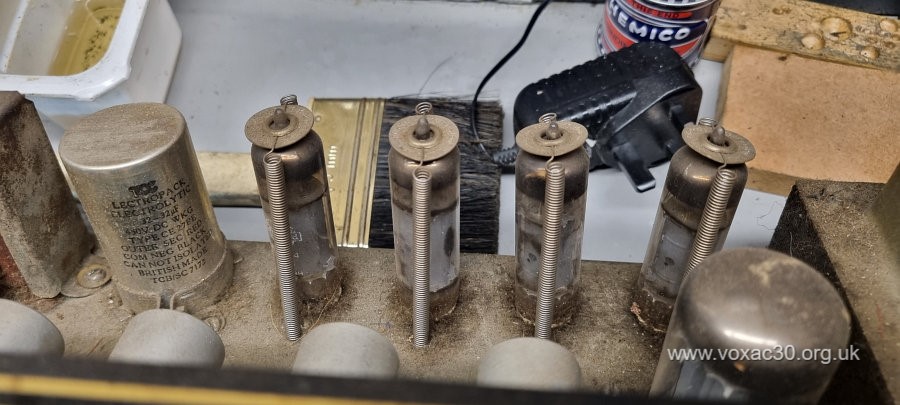

TCC filter capacitor with date code "SC" = March 1961.

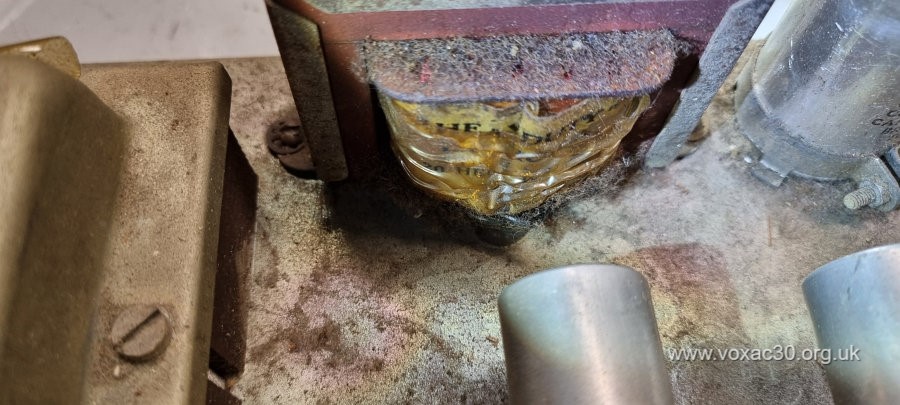

Radiospares choke.

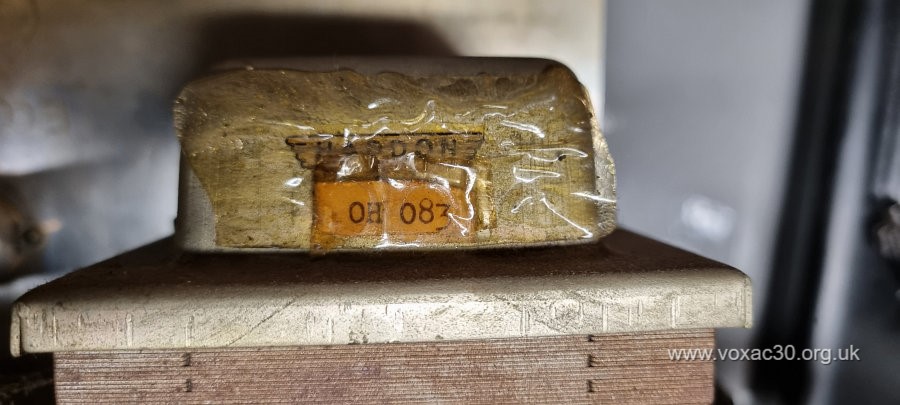

Haddon output transformer - JMI part number OH/083.

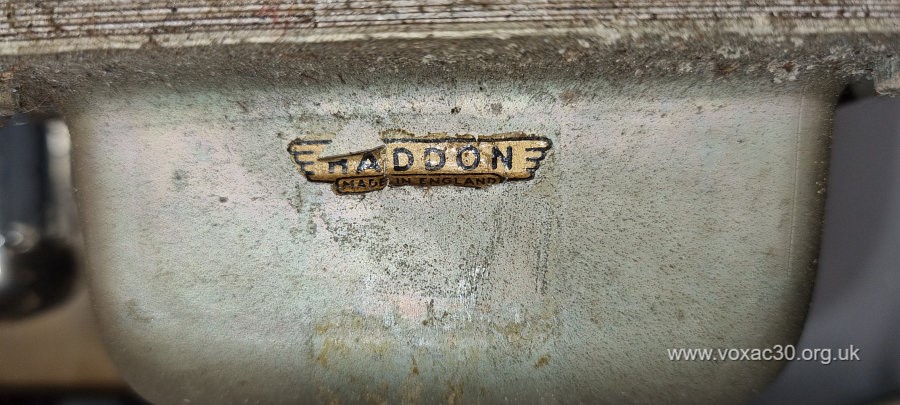

Haddon mains transformer.

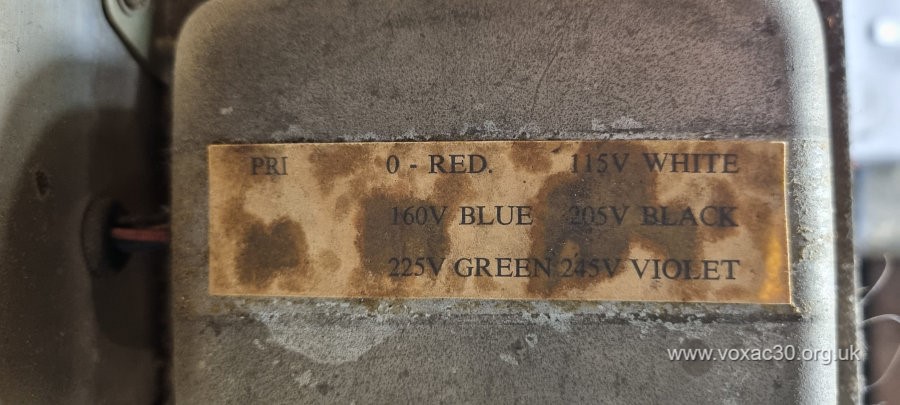

Haddon mains transformer - top of shround.

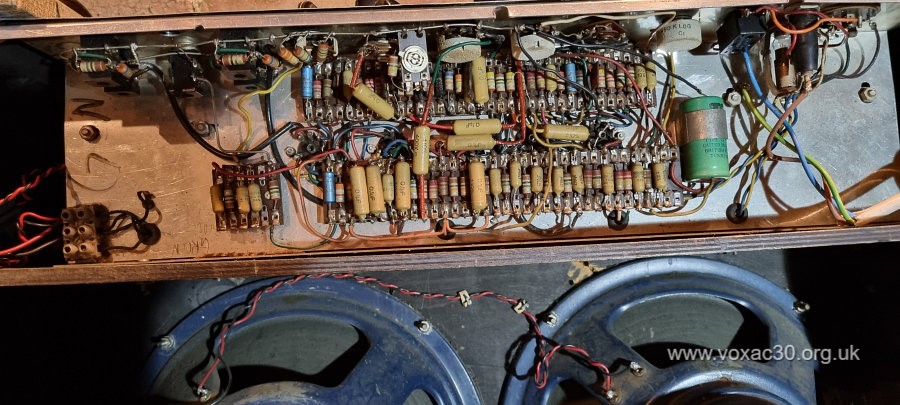

The green TCC capacitor has the date code "RJ" = September 1960. The Mullard mustard caps - replacements for the original black WIMA Tropydurs - have "D4N" = last quarter of 1964.

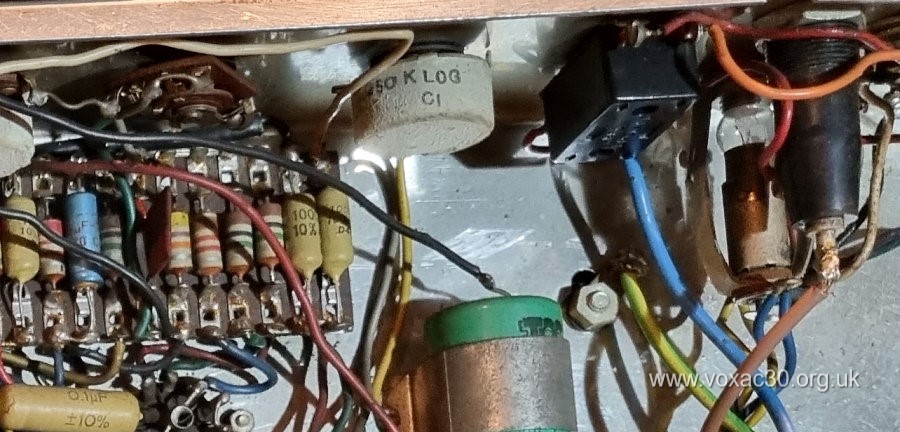

Tone pot with date code "CI" = March 1961.

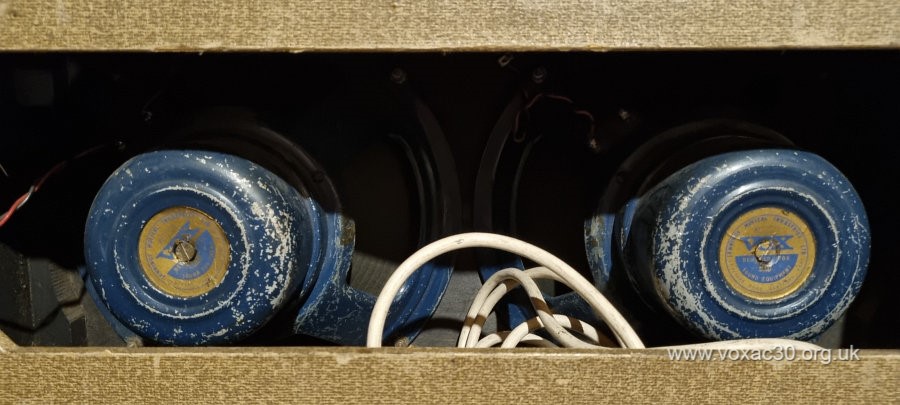

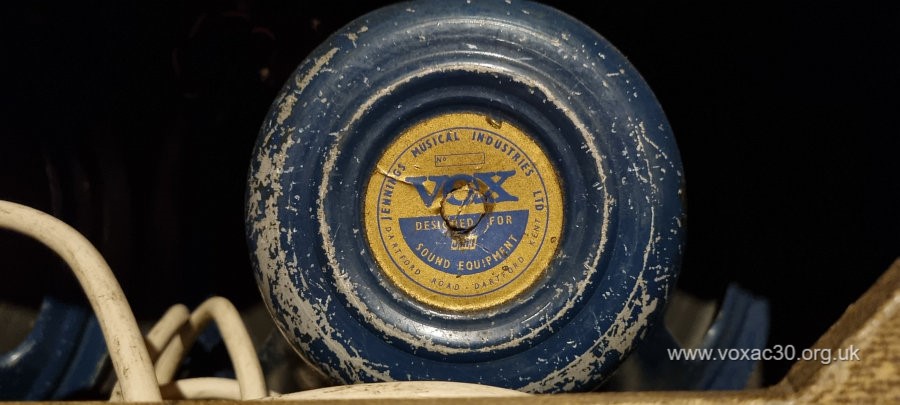

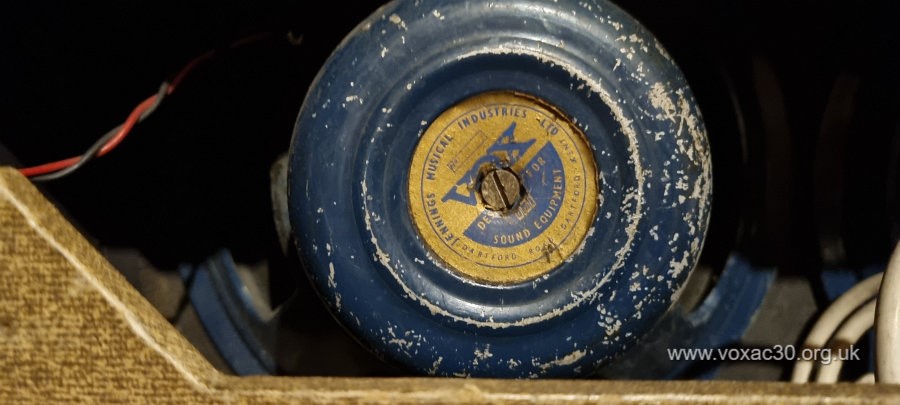

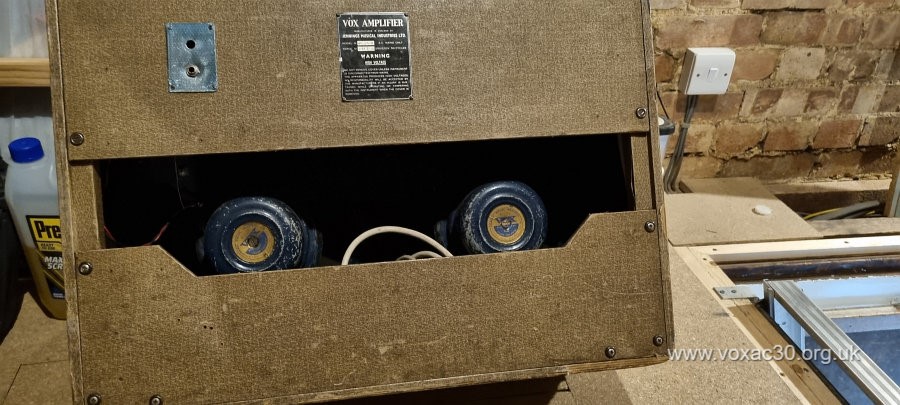

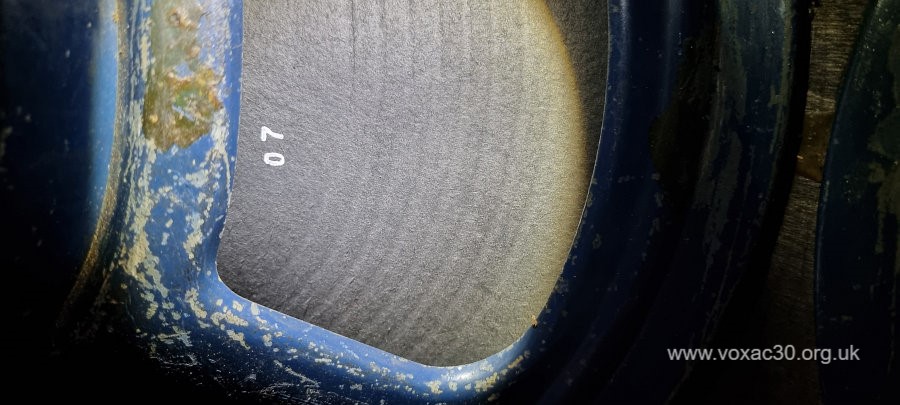

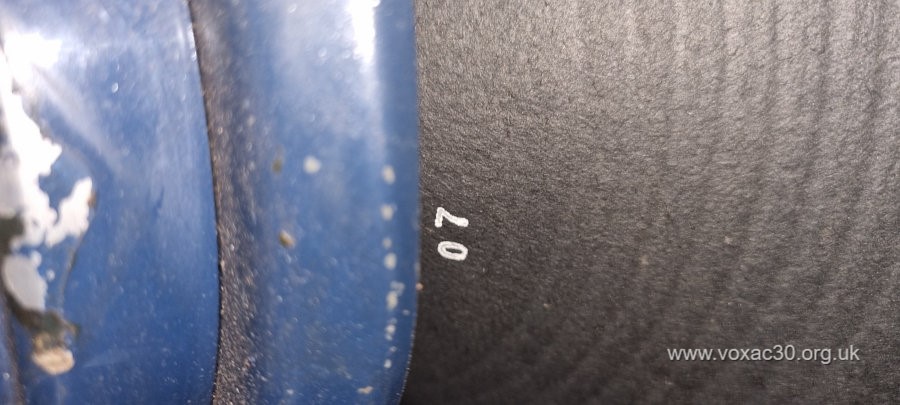

Speakers reconed.
